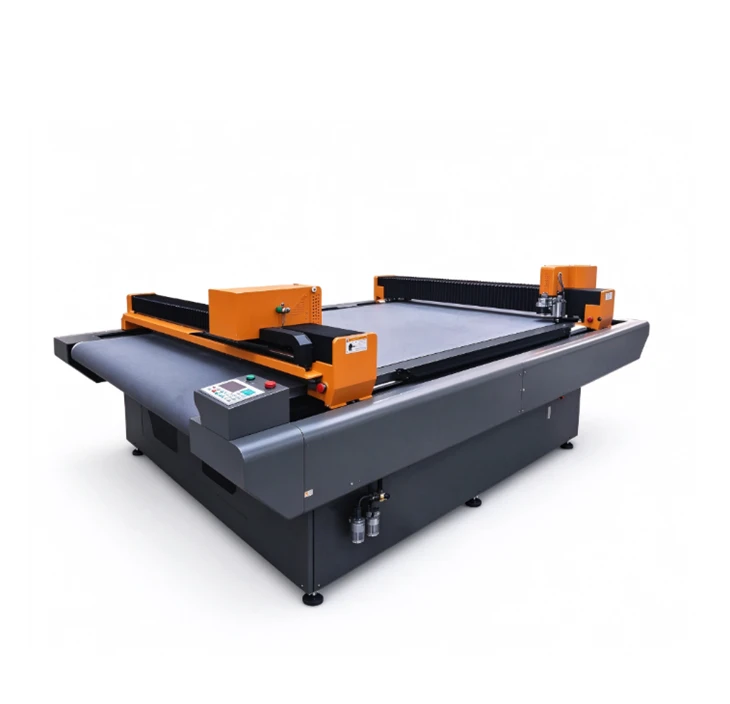

Double Head Automatic Vibrating Knife Cutting Machine

Dual-head mutual-moving cutting system with automatic feeding and intelligent paging. Designed for continuous operation, handling PU, leather, cloth, fiber, composite materials and mesh with high precision.

Request a Quote View Specifications

Double Head Automatic Vibrating Knife Cutting Machine

Why Shoe & Sole Factories Choose Our Cutting Machine

Double-Head Mutual-Moving System

Two cutting heads move independently and simultaneously, boosting cutting efficiency. This design maximizes the use of the cutting area and speeds up production on high-volume orders.

Single-Layer & Multi-Layer Cutting

Different cutting tools can be selected to achieve both single-layer and multi-layer cutting. This makes the machine suitable for prototyping, small batches, and mass production alike.

Automatic Feeding & Intelligent Paging

Automated material feeding and intelligent paging allow for continuous, uninterrupted operation. Reduce manual handling, lower labor costs, and keep your production line moving.

About This Vibrating Knife Cutting Machine

Our double-head automatic vibrating knife cutting machine is a versatile CNC cutting solution designed for the footwear and leather goods industries. Featuring a dual-head mutual-moving system and automatic transmission with intelligent paging, the machine ensures continuous, high-speed operation.

It is highly adaptable to different materials. By selecting the appropriate cutting tools, the machine can process PU, leather, cloth, fiber, composite materials, net cloth, and more. It supports both single-layer cutting for precision prototyping and multi-layer cutting for bulk production, making it an ideal tool for shoes, soles, and related components.

The machine operates on a precise servo motor system, achieving a cutting accuracy of ±0.1mm and a maximum speed of 1500mm/s. The vacuum adsorption table ensures materials remain flat and secure during the cutting process, preventing shifting and ensuring clean edges.

Technical Specifications

The following parameters are based on the standard configuration. Custom configurations are available.

Parameter	Specification	Parameter	Specification
Max Cutting Area	1580 × 2000 mm	Interface	USB or internet port
Machine Size	3750 × 2350 × 1450 mm	Dielectric Adsorption	Vacuum
Feeding Method	Automatic feeding	Induced Draft Fan Power	7.5kW / 9kW / 11kW optional
Max Speed	1500 mm/s	Main Power	220V / 50Hz
Cutting Accuracy	±0.1 mm	Fan Power	380V / 50Hz
Max Thickness of Materials	100 mm	Machine Weight	1100 kg
Motor	Servo	Operating Environment	Temperature 0–40°C, Humidity 20%–80% RH
Data Format	DXF, HPGL	Packing	Export-grade wooden case

Note: Voltage configuration and fan power (7.5kW / 9kW / 11kW) can be specified based on your factory's power supply and production capacity. Contact us with your requirements.

Applications

Shoe Upper Cutting

Precision cutting of PU, leather, mesh, and composite materials for shoe uppers. Suitable for both single-layer prototyping and multi-layer bulk cutting.

Sole & Insole Cutting

Efficiently cuts sole materials, insoles, and linings. The powerful vacuum adsorption keeps flexible materials flat for accurate, clean cuts.

Multi-Layer Fabric Cutting

Handles multi-layer stacks of cloth and fiber. The correct cutting tools can be selected to ensure all layers are cut cleanly without fraying.

Composite Materials

Ideal for technical textiles and composite materials used in modern footwear. The automatic feeding system keeps long production runs continuous.

Customization & Delivery

We configure double-head vibrating knife cutting machines to match your production line. When you work with us, you can specify:

Fan power - Choose from 7.5kW, 9kW, or 11kW based on material thickness and cutting load.
Voltage configuration - Main power 220V/50Hz, fan power 380V/50Hz.
Cutting tools - Specific cutting tools configured for PU, leather, cloth, fiber, composites, or mesh.
After-sales support - Operation video, manual, and remote technical guidance for setup and maintenance.

For delivery, typical lead time is 20–40 days after order confirmation. We provide installation guidance and commissioning support. Packaging uses export-standard wooden cases with moisture protection for ocean transport.

Frequently Asked Questions

How does the double-head mutual-moving system benefit production?

The two cutting heads can work simultaneously and move independently. This dual-head design maximizes cutting efficiency, reduces the time needed to complete large orders, and allows for flexible layouts on the 1580×2000mm cutting area.

Can this machine handle multi-layer cutting?

Yes. By selecting different cutting tools, the machine is capable of both single-layer and multi-layer cutting. It handles materials up to 100mm in thickness, making it suitable for both sampling and mass production.

What materials can it cut?

It is designed for PU, leather, cloth, fiber, composite materials, net cloth, and similar footwear materials. Different cutting tools should be selected for different materials to ensure the best cutting quality.

How does the automatic feeding system work?

The automatic feeding system combined with intelligent paging ensures continuous operation. It reduces manual material handling, keeps the cutting process flowing smoothly, and improves overall production efficiency.

What is the cutting accuracy of this machine?

The machine uses a servo motor drive system and achieves a cutting accuracy of ±0.1mm. Combined with the vacuum adsorption table, materials are held firmly in place for clean, precise cuts.

What is the typical lead time?

Typical lead time is 20–40 days after order confirmation, depending on configuration. We confirm the exact schedule during the quotation stage.

Need a Double Head Vibrating Knife Cutting Machine?

Tell us your material types, maximum cutting dimensions, output target, and destination port. We will recommend the right configuration and provide a detailed quotation covering machine, packing, and shipping.
