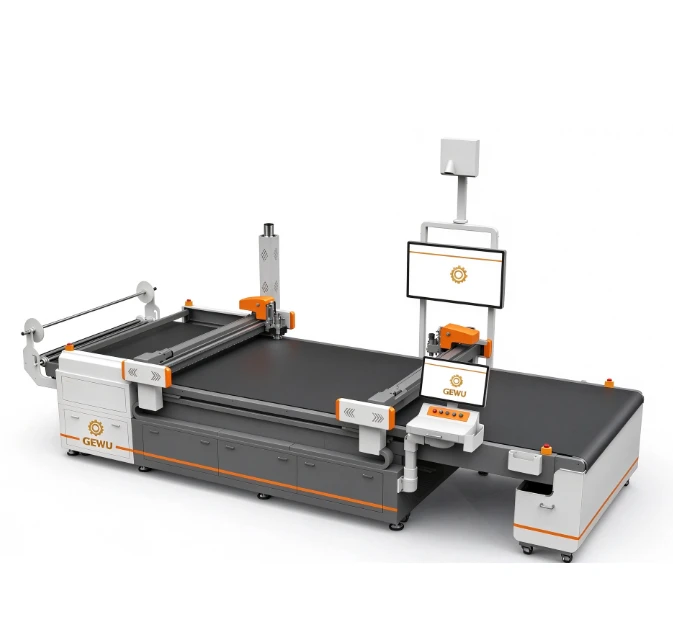

Shoe Factory Sample Cutting Machine for Fast, Accurate Sampling
Intelligent dual-head asynchronous cutting system with independently developed typesetting software. 16-zone vacuum adsorption platform for secure material holding during small-batch sampling and production.
Why Shoe Factories Choose Our Intelligent Cutting Machine
Independently Developed Intelligent Typesetting System
We independently developed the intelligent typesetting system for this machine. The cutting system is easy to operate and has a high utilization rate, saving both time and materials. Operators learn the software quickly without extended training periods.
Intelligent Dual-Head Asynchronous Cutting
Adopting intelligent dual-head asynchronous cutting, punching and integrated knife holder design. Efficient, precise and concise - the two heads work asynchronously to process cutting and punching operations in a single pass, reducing production steps.
Integrated Typesetting & Cutting Software
The machine is designed with integrated software for typesetting and cutting. It is easy to operate, has fast typesetting speed and high utilization rate, keeping the workflow simple for the development department.

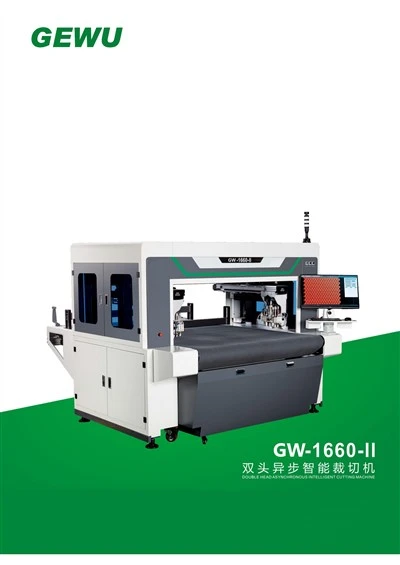

About This Intelligent Cutting Machine
Our intelligent cutting machine is designed for shoe factory sample rooms and small-batch production. It addresses the specific challenges of footwear sampling: frequent style changes, small order quantities, and the need to move from design to physical sample quickly without committing to physical cutting dies for every new style.
The machine body adopts an integrated design with strong rigidity and high stability, keeping cutting accuracy consistent during long working shifts. We independently developed the intelligent typesetting system that powers this machine. The cutting system is easy to operate and has a high utilization rate, saving time and materials. The integrated typesetting and cutting software allows fast layout planning with high material utilization, keeping the development department productive without requiring specialist programming skills.
The machine adopts intelligent dual-head asynchronous cutting, punching and integrated knife holder design. Efficient, precise and concise - the two tool heads work asynchronously so cutting and punching operations proceed simultaneously. Equipped with a high-frequency pneumatic knife, the machine cuts PU, microfiber, mesh, PVC and other shoe materials cleanly and consistently. The platform adopts a dynamic adsorption system with 16 vacuum adsorption zones, providing strong holding force that keeps materials flat and less prone to movement during cutting.
Imported servo motors, guide rails and pneumatic components ensure the accuracy, stability and durability of the machine.
Technical Specifications
The following parameters are typical for this intelligent cutting machine. Please confirm the current configuration at the time of your inquiry.
| Parameter | Specification |
|---|---|
| Application | Shoe factory sampling, small-batch cutting, marking and punching for R&D departments |
| Tool Holder | Intelligent dual-head asynchronous: cutting, punching and integrated knife holder |
| Cutting Knife | High-frequency pneumatic knife |
| Applicable Materials | PU, microfiber, mesh, PVC and similar shoe materials |
| Typesetting System | Independently developed intelligent typesetting system with integrated typesetting and cutting software |
| Working Platform | Dynamic adsorption system with 16 vacuum adsorption zones |
| Drive Components | Imported servo motors, guide rails and pneumatic components |
| Machine Body | Integrated design with strong rigidity and high stability |
| Working Voltage | Confirm at time of order |
| Working Area | Confirm at time of inquiry |
| Cutting Speed | Confirm at time of inquiry |
| Cutting Thickness | Confirm at time of inquiry |
| Compressed Air Input | Confirm at time of inquiry |
| Packing | Export-grade wooden case |
Note: Working area, cutting speed, voltage and tooling configuration can be customized. Contact us with your material types, sample dimensions and output target for a tailored recommendation.
Applications
Sample Room Development
Developed for R&D departments and sample rooms. The independently developed intelligent typesetting system and integrated typesetting and cutting software let designers move from drawing to physical sample quickly, shortening the development cycle.
Small-Batch Production
Designed for small batch orders. Factories can produce samples and small runs without committing to physical cutting dies. Change from one shoe style to another by loading a new file, saving time and tooling costs.
Multi-Material Cutting
The high-frequency pneumatic knife cuts PU, microfiber, mesh, PVC and similar shoe materials cleanly and consistently. One machine covers the range of materials common in footwear upper development.
Dual-Head Asynchronous Processing
Intelligent dual-head asynchronous cutting and punching. The two tool heads work simultaneously to reduce production steps, keeping the sampling workflow efficient and precise for multi-style development.
Customization & Delivery
We configure intelligent cutting machines to match your sampling workflow. When you work with us, you can specify:
- Working area - matched to your sample sizes and material dimensions.
- Tooling configuration - dual-head asynchronous cutting, punching and integrated knife holder configured for your materials.
- Vacuum adsorption platform - 16-zone dynamic adsorption system.
- Software - independently developed intelligent typesetting system with integrated typesetting and cutting software.
- Voltage configuration - configured for your factory's power supply.
For delivery, typical lead time is 20–40 days after order confirmation, depending on configuration complexity. We provide installation guidance and commissioning support. Packaging uses export-standard wooden cases with moisture protection for ocean transport.
Frequently Asked Questions
What is the main advantage of this intelligent cutting machine for shoe factory sampling?Need an Intelligent Cutting Machine for Your Shoe Factory Sampling?
Tell us your material types, sample dimensions, output target, and destination port. We will recommend the right configuration and provide a detailed quotation covering machine, packing, and shipping.
