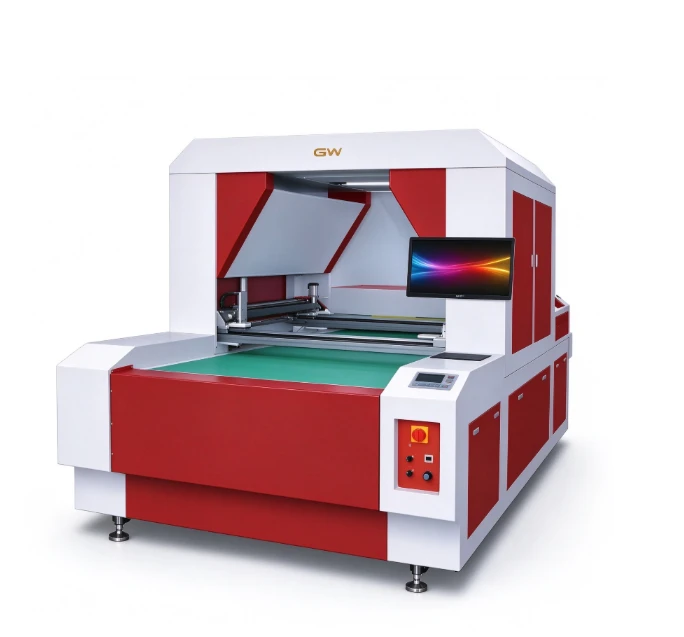

Automatic Intelligent Line Drawing Machine for Shoe Uppers
Developed to replace manual drawing and screen printing. High-definition industrial cameras identify material contours automatically for precision marking. Eco-friendly, labor-saving, and highly efficient.
Why Shoe Factories Choose Our Intelligent Drawing Machine
Replaces Manual Drawing & Screen Printing
An intelligent device developed for drawing lines on shoe uppers, leather and cloth. It eliminates the need for manual drawing lines and screen printing, solving the industry's labor shortage and low-efficiency problems.
HD Cameras & Auto-Positioning
High-definition industrial cameras combined with automatic positioning are used to automatically identify material contours and precisely locate line drawings. Line drawing accuracy reaches ±0.15mm.
Automatic Feeding & Random Placement
With an automatic feeding and unloading device, the image recognition system locates materials quickly. Operators can place the cut vamp in the processing area at will, and the machine will find it and perform the marking task automatically.
About This Automatic Intelligent Line Drawing Machine
Our automatic intelligent line drawing machine is developed to replace traditional manual drawing lines and screen printing on shoe uppers, leather, and cloth. Traditional methods rely heavily on skilled labor, consume large amounts of consumables, and create pollution. This intelligent equipment solves these issues by automating the entire marking process.
The machine features high working efficiency, saves labor costs, and delivers high drawing precision. It uses high-definition industrial cameras combined with an automatic positioning system to identify material contours automatically and precisely locate the line drawings. With the automatic feeding and unloading device, the image recognition system can locate materials automatically, quickly, and accurately. Operators simply place the cut vamp in the processing area at will, and the machine takes over.
It is an environmentally friendly and pollution-free solution. The machine supports multiple ink types, including high-temperature disappearing ink, water disappearing ink, permanent ink, and silver ink, in colors of white, blue, yellow, and red. This flexibility makes it suitable for various production workflows in modern footwear manufacturing.
Technical Specifications
The following parameters are typical for this automatic intelligent line drawing machine. Please confirm the current configuration at the time of your inquiry.
| Parameter | Specification |
|---|---|
| Maximum Line Width | 1200 × 800 mm |
| Maximum Profile Size | Double-head: 3200(L) × 1900(W) × 2200(H) mm Single-head: 3000(L) × 1900(W) × 2200(H) mm |
| Total Weight | 1.1 T |
| Fast Line Drawing Speed | 500 – 1200 mm/s |
| Line Drawing Accuracy | ±0.15 mm |
| Rated Power | 6.5 kW |
| Power Supply | 220V |
| Pressure | 0.4 – 0.8 MPa |
| Work Environment | Temperature 10–45°C; Humidity 30%–65% |
| Printing Ink | High-temperature disappearing ink / Water disappearing ink / Permanent ink / Silver ink |
| Ink Color | White / Blue / Yellow / Red |
| Desktop Computer | I5-7500 CPU, 2G discrete graphics, 8G RAM, 120G SSD, 21-inch monitor |
Note: Machine configuration (single-head or double-head) and ink types can be customized based on your production requirements. Contact us with your material types and output target for a tailored recommendation.
Applications
Shoe Upper Marking
Replaces manual line drawing and screen printing on shoe uppers. High-definition cameras identify contours and draw precise lines, keeping the workflow continuous and clean.
Leather & Cloth Processing
Applicable to leather and cloth materials. The automatic feeding and unloading device allows operators to place materials randomly in the processing area, significantly speeding up the workflow.
Environmental Protection
Traditional screen printing creates pollution. This machine is environmental protection and pollution-free, improving the factory working environment while maintaining high drawing precision.
Labor Cost Reduction
By replacing manual drawing, factories can reduce their reliance on skilled labor. High working efficiency and automatic operation save labor costs while maintaining consistent output quality.
Customization & Delivery
We configure automatic intelligent line drawing machines to match your production line. When you work with us, you can specify:
- Machine configuration - single-head or double-head setup to match your output capacity.
- Ink types - high-temperature disappearing, water disappearing, permanent, or silver ink based on your production process.
- Computer configuration - standard desktop computer included; specific software requirements can be discussed.
- Voltage and air supply - 220V power supply and 0.4-0.8MPa air pressure, compatible with standard factory utilities.
- After-sales support - operation video, manual, and remote technical guidance for setup and maintenance.
For delivery, typical lead time is 20–40 days after order confirmation, depending on configuration. We provide installation guidance and commissioning support. Packaging uses export-standard wooden cases with moisture protection for ocean transport.
Frequently Asked Questions
What is the main function of this automatic intelligent line drawing machine?Need an Automatic Intelligent Line Drawing Machine for Your Factory?
Tell us your material types, output target, and destination port. We will recommend the right configuration and provide a detailed quotation covering machine, packing, and shipping.
