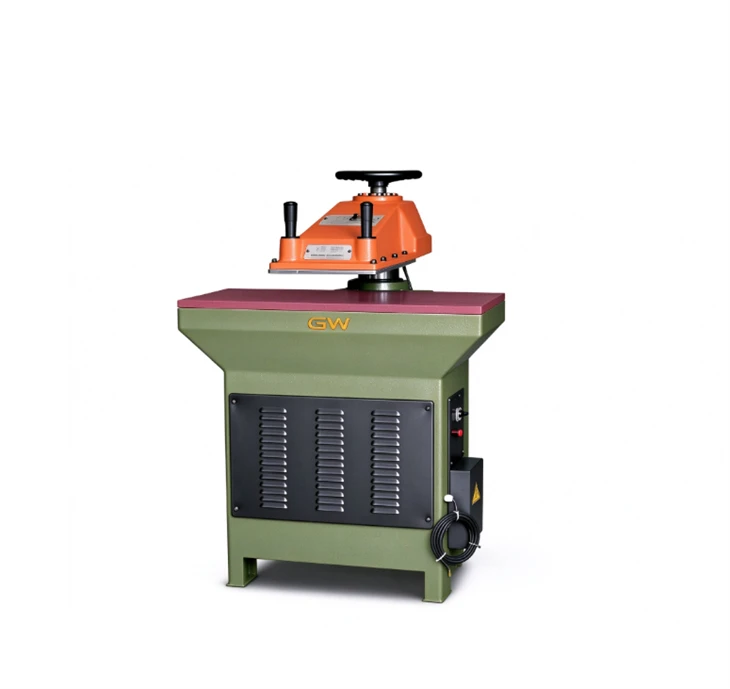

Hydraulic Swing Arm Cutting Machine for Shoes & Sole Materials

Heavy-duty 16T hydraulic press for fast, flexible cutting of shoe soles, uppers and flexible materials. Two-hand operation ensures safety, while the self-lubricating system extends machine life.

Request a Quote View Specifications

Why Choose Our Hydraulic Swing Arm Cutting Machine

Flexible Operation, Fast Cutting

The swing arm design allows the cutting head to move easily across the cutting area, making it simple to position dies for different shoe components. This flexibility speeds up the cutting process and adapts well to multi-style production.

Two-Hand Operation for Safety

Equipped with a two-hand control system, requiring both hands on the buttons to activate the cutting stroke. This safety feature protects operators from hand injuries and ensures reliable, controlled operation.

Self-Lubricating System for Durability

The machine structure is simple and robust. Built-in self-lubricating system reduces wear on moving parts and extends the service life of the machine, lowering daily maintenance requirements.

About This Hydraulic Swing Arm Cutting Machine

Our hydraulic swing arm cutting machine is a reliable workhorse for shoe factories, designed for fast and flexible cutting of shoe soles, uppers, EVA, sponge and other flexible materials. Driven by a 1.5kW motor, it delivers a maximum cutting force of 16 tons, easily pressing through multi-layer materials and standard cutting dies.

The swing arm design gives operators maximum flexibility. Instead of moving the material, the operator simply swings the cutting head to the next die position. This is highly efficient for cutting various shoe components from large sheets. Safety is a priority with the two-hand operation system, which keeps hands clear of the cutting area during operation.

To keep maintenance low, the machine features a self-lubricating system. This automatically reduces friction on the moving parts, minimizing wear and preventing breakdowns during continuous production. The sturdy structure and simple design make this machine a durable and cost-effective addition to any footwear manufacturing line.

Technical Specifications

The following parameters are based on the standard configuration. Custom configurations are available.

Parameter	Specification
Machine Dimensions	900 × 720 × 1260 mm
Cutting Area	900 × 400 mm
Maximum Cutting Force (M.C.F)	16 T
Stroke	10 – 100 mm
Motor Power	2 HP / 1.5 kW
Weight	630 kg
Control System	Two-hand operation
Lubrication	Self-lubricating system
Packing	Export-grade wooden case

Note: Voltage configuration and cutting board specifications can be discussed. Contact us with your material types and output target for a tailored recommendation.

Applications

Shoe Sole Cutting

Ideal for cutting rubber, EVA and PU soles from large sheets. The 16T pressure ensures clean cuts through thick sole materials with standard clicker dies.

Shoe Upper & Lining Cutting

Fast and flexible cutting of shoe uppers, linings, and synthetic leather. The swing arm allows quick positioning for multiple small dies on a single sheet.

Flexible Material Processing

Suitable for cutting sponge, foam, textile, and other soft materials used in footwear and related industries.

High-Volume Production

Flexible operation and fast cutting strokes keep up with continuous production lines, while the two-hand safety control protects operators.

Customization & Delivery

We configure hydraulic swing arm cutting machines to match your production needs. When you work with us, you can specify:

Voltage configuration - standard or customized to your factory's power supply.
Cutting board - optional configurations for different material thicknesses.
Line layout adaptation - placement to match your factory floor plan and workflow.
After-sales support - operation video, manual and remote technical guidance for adjustment and maintenance.

For delivery, typical lead time is 20–40 days after order confirmation, depending on configuration. We provide installation guidance and commissioning support. Packaging uses export-standard wooden cases with moisture protection for ocean transport.

Frequently Asked Questions

What materials can this hydraulic swing arm cutting machine cut?

It is designed for shoe soles, uppers, EVA, sponge, leather, textile, and other flexible materials. The 16-ton maximum cutting force easily handles multi-layer stacks and thick sole materials.

How does the two-hand operation work?

The machine requires the operator to press two separate buttons simultaneously with both hands to activate the cutting stroke. This ensures that neither hand is in the cutting area during operation, preventing serious injuries and ensuring reliable production.

What is the benefit of the self-lubricating system?

The self-lubricating system automatically supplies oil to moving parts, which significantly reduces mechanical wear. This extends the service life of the machine, reduces the frequency of manual maintenance, and lowers long-term operating costs.

Is the swing arm easy to operate for different shoe styles?

Yes. The swing arm design allows the cutting head to be moved easily to any position over the cutting area. Operators can quickly switch between different dies and shoe components without moving the material, making it highly flexible for multi-style production.

What is the typical lead time?

Typical lead time is 20–40 days after order confirmation, depending on configuration. Custom or complex configurations may require longer. We confirm the exact schedule during the quotation stage.

Need a Hydraulic Swing Arm Cutting Machine for Your Factory?

Tell us your material types, die dimensions, output target, and destination port. We will recommend the right configuration and provide a detailed quotation covering machine, packing, and shipping.
