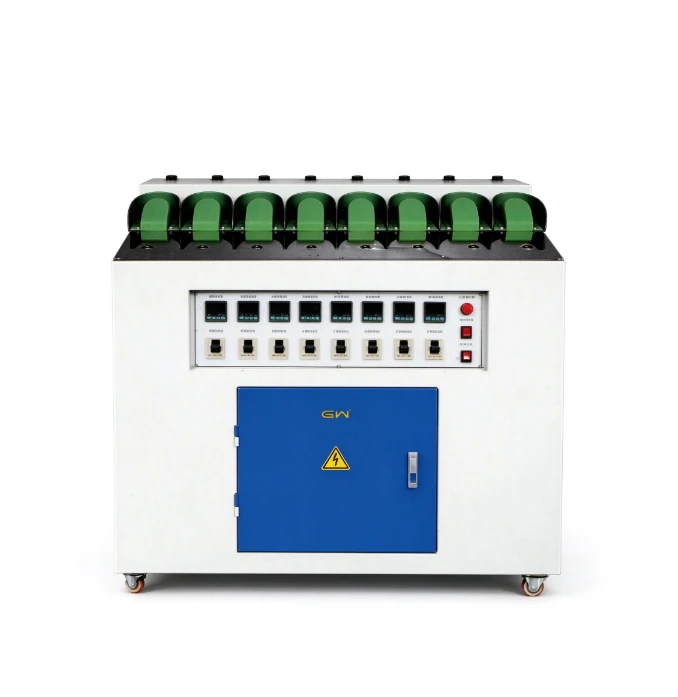

Heel After Hot Warm Mechanism GW-935 for Shoe Setting
Suitable for heel shaping, using high-temperature hot air to rapidly activate the hot melt adhesive inside the heel. Features independent temperature control and high accuracy, working in tandem with existing frozen setting machines for a fast, artistic finish.
Why Shoe Factories Choose Our Heel Hot Warm Mechanism
Rapid Hot Melt Activation
High-temperature hot air quickly activates the hot melt adhesive inside the heel before shaping. This ensures the heel holds its shape firmly once set, reducing rework and improving bonding quality.
Independent Temperature Control
The machine features independent temperature control with unified operation. This provides high accuracy in temperature management, ensuring consistent adhesive activation without overheating or damaging the upper materials.
Pairs Perfectly with Frozen Setting Machines
Used together with existing frozen setting machines, this mechanism achieves a fast and artistic shaping effect. The hot air activates the adhesive, and the subsequent freezing locks the shape permanently.
About This Heel After Hot Warm Mechanism
Our Heel After Hot Warm Mechanism is designed for the shoe manufacturing process before setting. It is suitable for adapting to the heel shape by applying high-temperature hot air to rapidly activate the hot melt adhesive inside the heel. This step is critical for ensuring the heel bonds securely and maintains its shape throughout the life of the shoe.
The machine features independent temperature control with unified operation, providing high accuracy of temperature. This precise control ensures the hot melt adhesive is activated evenly without overheating or damaging the delicate materials of the heel. Consistent temperature management across production runs helps maintain uniform quality.
When used with existing frozen setting machines, the mechanism enables a quick and artistic shaping effect. The hot air prepares the heel, and the immediate freezing process locks the shape in place, delivering a crisp, well-defined heel structure. The machine is built with industrial-grade components to ensure durability and reliable performance in continuous production environments.
Technical Specifications
The following parameters are based on the standard configuration. Custom configurations are available.
| Parameter | Specification |
|---|---|
| Model | GW-935 |
| Application | Heel shaping preparation, hot melt adhesive activation |
| Temperature Control | Independent temperature control, high accuracy |
| Total Power Consumption | 9.7 kW |
| Machine Dimensions | 1100 × 700 × 1010 mm |
| Packing Size | 1200 × 800 × 1110 mm |
| Net Weight (N.W.) | 135 kg |
| Gross Weight (G.W.) | 185 kg |
| Packing | Export-grade wooden case |
Note: Voltage configuration and heating parameters can be customized. Contact us with your shoe types and output target for a tailored recommendation.
Applications
Heel Shaping Preparation
Prepares the heel for the final setting process by applying high-temperature hot air. This ensures the heel material is pliable and the internal adhesive is ready for shaping.
Hot Melt Adhesive Activation
Rapidly activates the hot melt adhesive inside the heel. Uniform heating ensures the adhesive reaches the optimal state for bonding, preventing delamination or heel collapse.
Integration with Frozen Setting
Works seamlessly with existing frozen setting machines. The heated heel is immediately transferred to the freezing process, locking in the shape for a fast, high-quality finish.
High-Volume Footwear Production
Designed to keep pace with continuous assembly lines. The independent temperature control and robust build ensure reliable operation shift after shift.
Customization & Delivery
We configure heel hot warm mechanisms to match your production line. When you work with us, you can specify:
- Voltage configuration - matched to your factory's power supply.
- Heating parameters - independent temperature controls programmed for your specific heel materials.
- Line layout adaptation - configuration to align with your existing frozen setting machines.
- After-sales support - operation video, manual and remote technical guidance for adjustment and maintenance.
For delivery, typical lead time is 20–40 days after order confirmation, depending on configuration. We provide installation guidance and commissioning support. Packaging uses export-standard wooden cases with moisture protection for ocean transport.
Frequently Asked Questions
What is the main function of this Heel After Hot Warm Mechanism?Need a Heel After Hot Warm Mechanism for Your Shoe Factory?
Tell us your heel materials, production output, and destination port. We will recommend the right configuration and provide a detailed quotation covering machine, packing, and shipping.
