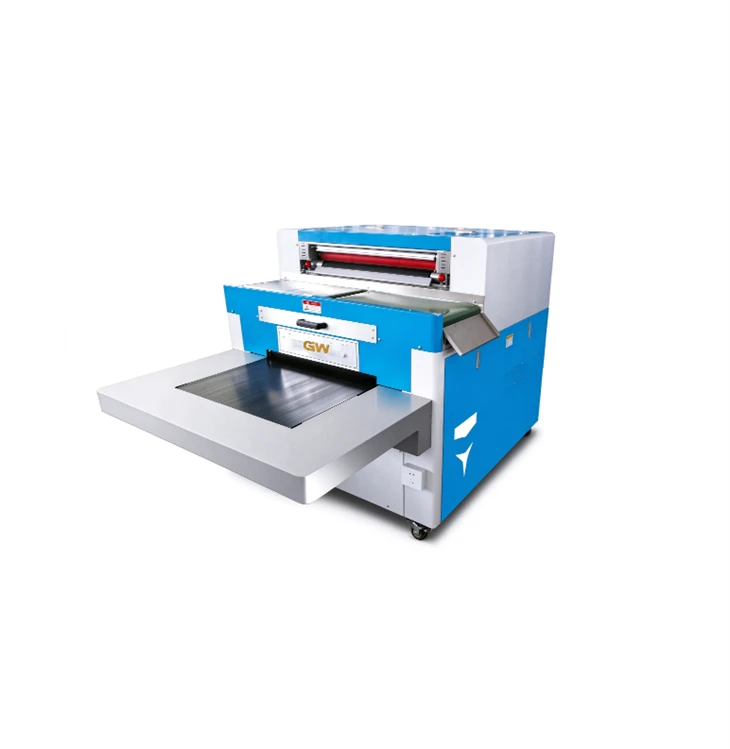

Gas-Pressure Hot Rolling Laminating Machine

Suitable for laminating the fabric and the interior linings together with hot melt adhesive. Features a seamless high-temperature resistant belt, automatic belt rectification, and a unique cooling system for quick shaping.

Request a Quote View Specifications

Why Shoe Factories Choose Our Laminating Machine

Durable Seamless Belt & Auto-Rectification

Equipped with a seamless high-temperature resistant belt that is very durable. The multi-point inductor can rectify the belt automatically to prevent deviation, and the auto-emergency stop device protects the belt from damage and ensures operator safety.

Special Cooling System for Fast Shaping

The special cooling system shapes the laminated material quickly and dries the glue rapidly. This ensures the fabric and lining stay firmly bonded without delamination.

Material Separator & Collecting Device

The unique separator takes the material off the belt easily and quickly. The front material collecting device reduces labor intensity and removes dirt from the belt automatically.

About This Gas-Pressure Hot Rolling Laminating Machine

Our gas-pressure hot rolling laminating machine is suitable for laminating fabric and interior linings together using hot melt adhesive. It provides a continuous and stable bonding process essential for high-quality shoe upper production.

The machine is equipped with a seamless high-temperature resistant belt, which is very durable and ensures a smooth surface for the material. A multi-point inductor automatically rectifies the belt during operation to prevent deviation, while the built-in automatic emergency stop device prevents belt damage and guarantees the safety of the operators.

To ensure the best bonding effect, the machine features a special cooling system that shapes the laminated material quickly and dries the glue fast. Additionally, the unique material separator takes the material off the belt easily and quickly. The front collecting device not only reduces labor intensity but also removes dirt from the belt, keeping the production line clean and efficient.

Technical Specifications

The following parameters are based on the standard configuration. Custom configurations are available.

Parameter	Specification
Voltage	380V / 50Hz
Power	11 kW
Working Pressure	500 kgs
Work Platform	600 mm
Net Weight	300 kgs
Packing Size	2000 × 1150 × 1160 mm
Packing	Export-grade wooden case

Note: Voltage configuration and work platform size can be customized. Contact us with your material types and output target for a tailored recommendation.

Applications

Fabric & Lining Lamination

Specifically designed to laminate fabric and interior linings together using hot melt adhesive, providing a smooth and wrinkle-free finish for shoe uppers.

Continuous Production

The multi-point inductor and automatic belt rectification keep the machine running smoothly during continuous mass production, minimizing downtime and waste.

High-Safety Operations

Equipped with an auto-emergency stop device to ensure operator safety, especially during the rapid loading and unloading of materials.

Clean Workshop Environment

The front material collecting device helps remove dirt from the belt automatically, reducing labor intensity while maintaining a cleaner production environment.

Customization & Delivery

We configure laminating machines to match your specific production line. When you work with us, you can specify:

Voltage configuration - 380V / 50Hz standard, customizable for different regional power supplies.
Work platform size - tailored to your material width and dimensions.
Temperature and pressure settings - adjusted for your specific hot melt adhesives and fabrics.
After-sales support - operation video, manual and remote technical guidance for adjustment and maintenance.

For delivery, typical lead time is 20–40 days after order confirmation, depending on configuration. We provide installation guidance and commissioning support. Packaging uses export-standard wooden cases with moisture protection for ocean transport.

Frequently Asked Questions

What is the main function of this machine?

It is suitable for laminating the fabric and the interior linings together using hot melt adhesive. The process ensures a strong, smooth, and durable bond for shoe uppers and related materials.

How does the automatic belt rectification work?

The machine uses a multi-point inductor to automatically detect and rectify the belt, keeping it on track. It also has an auto-emergency stop device that protects the belt from damage and ensures operator safety.

Why is the special cooling system important?

The special cooling system shapes the laminated material quickly and dries the glue rapidly. This prevents delamination and ensures the material can be immediately handled in the next production step.

How does the material separator help?

The unique separator takes the material off the belt easily and quickly. Combined with the front material collecting device, it reduces labor intensity and removes dirt from the belt automatically.

What is the power requirement?

The machine operates on 380V / 50Hz with a total power of 11 kW. Voltage configuration can be discussed for different regional power supplies.

What is the typical lead time?

Typical lead time is 20–40 days after order confirmation, depending on configuration. We confirm the exact schedule during the quotation stage.

Need a Gas-Pressure Hot Rolling Laminating Machine?

Tell us your fabric materials, lining types, output target, and destination port. We will recommend the right configuration and provide a detailed quotation covering machine, packing, and shipping.
