CNC Leather Typesetting Machine for Shoe Factory Production
Intelligent leather typesetting and scanning system with three industrial CCD cameras, barcode generation and printing, and optional projection. Scans, identifies and arranges leather efficiently before cutting.
Why Shoe Factories Choose Our CNC Leather Typesetting Machine
Three Industrial CCD High-Definition Camera Systems
The machine adopts three sets of industrial CCD high-definition camera acquisition systems to capture full leather contours, defects and surface details. The high-definition data feeds directly into the typesetting software for accurate identification and positioning. This replaces slow manual inspection with reliable digital capture.
Barcode Generation & Printing System
Each piece of leather can be assigned a barcode through the onboard barcode generation and printing system. The barcode tracks leather identity, grade and typesetting information through production, supporting transparent and standardized order management. When scanned at the cutting station, the system retrieves the matching layout data automatically.
Intelligent Typesetting Server & Automatic Software
The machine can be equipped with an intelligent typesetting server and a fully automatic intelligent typesetting software system. The software reads leather contours and defect information from the CCD cameras, then generates optimized layouts automatically. Factories can link multiple cutting machines to the server for higher throughput.
About This CNC Leather Typesetting Machine

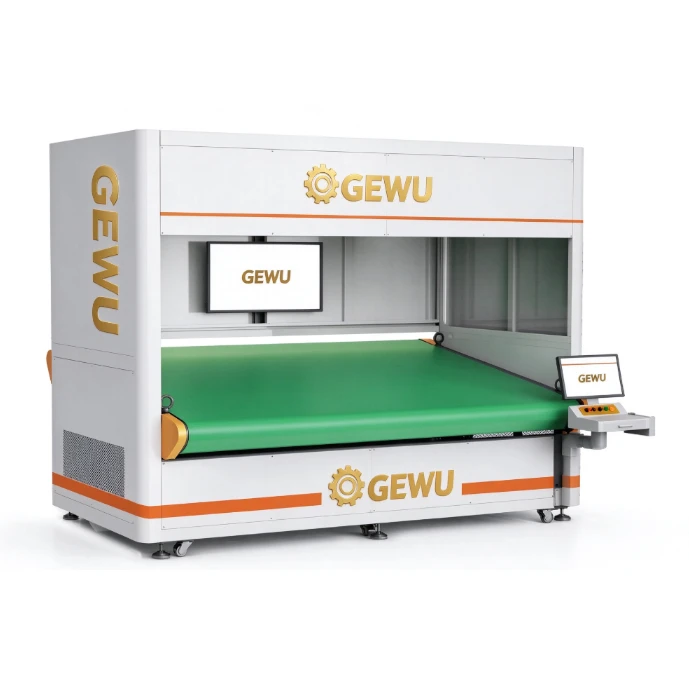

Our CNC leather typesetting machine is a dedicated pre-cutting workstation for shoe factories and leather product manufacturers. It scans, identifies and arranges leather pieces before they move to the cutting station, so the cutting machine receives a ready, optimized layout instead of spending time on typesetting itself.
The machine adopts three sets of industrial CCD high-definition camera acquisition systems that capture the full leather contour, surface defects and grain details. The system automatically identifies defect points and leather contours, then categorizes them according to user-defined settings. It is equipped with an LED multi-level brightness light source and an electronic marking defect resolution system, ensuring that defect identification remains reliable under different factory lighting conditions and across different leather grades.
This machine adopts a barcode generation and printing system. Each leather hide or piece receives a barcode that links to its scanned contour data, defect information and assigned layout. When the leather reaches the cutting machine, scanning the barcode recalls the matching typesetting data, keeping the workflow continuous and traceable. The machine adopts a sloping working area for comfortable operation and supports automatic transmission, so operators can load and unload leather without awkward reaching or manual repositioning.
The machine can be optionally equipped with a projection system for visual layout reference, and can also be equipped with an intelligent typesetting server and a fully automatic intelligent typesetting software system. The integrated software handles contour reading, defect mapping, automatic layout and data export to cutting machines. This makes it practical for factories running multiple styles and small to medium batches, where material utilization and changeover speed directly affect cost.
Technical Specifications
The following parameters are typical for this CNC leather typesetting machine. Please confirm the current configuration at the time of your inquiry.
| Parameter | Specification |
|---|---|
| Application | Leather scanning, defect identification, typesetting and barcode labeling before cutting |
| Camera System | Three sets of industrial CCD high-definition camera acquisition systems |
| Barcode System | Barcode generation and printing system for leather identity tracking |
| Light Source | LED multi-level brightness light source |
| Defect Resolution | Electronic marking defect resolution system |
| Working Area Design | Sloping working area for comfortable operation, with automatic transmission |
| Projection System | Optional |
| Typesetting Software | Intelligent typesetting server with fully automatic intelligent typesetting software system (optional) |
| Applicable Materials | Genuine leather, synthetic leather and similar flexible materials |
| Working Voltage | Confirm at time of order |
| Working Area | Confirm at time of inquiry |
| Camera Resolution | Confirm at time of inquiry |
| Packing | Export-grade wooden case |
Note: Working area, camera resolution, projection system and typesetting software configuration can be customized. Contact us with your leather types, output target and existing cutting machine model for a tailored recommendation.
Applications
Pre-Cutting Leather Inspection
The three CCD cameras capture full leather contours and defects. The electronic marking defect resolution system identifies defect points, and the LED multi-level brightness light source ensures reliable capture across different leather grades. This replaces slow manual marking with consistent digital inspection.
Intelligent Typesetting & Layout
With the optional intelligent typesetting server and fully automatic typesetting software, the system reads contour and defect data, then generates optimized layouts automatically. This reduces manual layout work and improves material utilization across different leather shapes and sizes.
Barcode Labeling & Production Tracking
The barcode generation and printing system assigns each leather piece a unique barcode linked to its contour data and layout. Scanning the barcode at the cutting machine retrieves the matching typesetting data, keeping production traceable and continuous.
Multi-Machine Production Linking
The typesetting server can link multiple cutting machines, allowing one typesetting station to serve several cutting stations. This improves overall production efficiency by separating typesetting from cutting and keeping both stations running continuously.
Customization & Delivery
We configure CNC leather typesetting machines to match your leather types and production layout. When you work with us, you can specify:
- Working area - matched to your leather piece sizes and throughput requirements.
- Camera system - three CCD high-definition cameras as standard, with resolution confirmed at order stage.
- Projection system - optional, for visual layout reference on the working area.
- Typesetting software - intelligent typesetting server with fully automatic typesetting software, or standard configuration.
- Barcode system - barcode generation and printing configuration matched to your labeling workflow.
- Voltage configuration - configured for your factory's power supply.
For delivery, typical lead time is 30–45 days after order confirmation, depending on configuration complexity. We provide installation guidance and commissioning support. Packaging uses export-standard wooden cases with moisture protection for ocean transport.
Frequently Asked Questions
What is the role of the three industrial CCD camera systems?Need a CNC Leather Typesetting Machine for Your Production Line?
Tell us your leather types, working area requirements, existing cutting machine model, and destination port. We will recommend the right configuration and provide a detailed quotation covering machine, packing, and shipping.
