Benefits of Intelligent Heel and Side Lasting Machine

In the complex sequence of footwear manufacturing, the lasting process is the critical juncture where a flat, two-dimensional upper is transformed into a three-dimensional shoe that fits a human foot. While toe lasting sets the front profile, the heel and side lasting process (often referred to as waist lasting) determines the structural integrity, the arch support, and the overall aesthetic flow of the shoe's back half.

Traditionally, shaping the heel and waist was an artisanal skill. It involved a process known as "hand-pulling," where skilled operators manually stretched, pulled, and glued the upper over the last, holding it in place until the adhesive set. This method was physically demanding, highly inconsistent, and acted as a massive bottleneck in production lines.

The introduction of the Intelligent Heel and Side Lasting Machine has fundamentally revolutionized this stage of shoemaking. By combining advanced hydraulics, precise pneumatics, and intelligent PLC controls, these machines do not just automate a task; they elevate the entire quality standard of the finished product while drastically reducing costs.

This comprehensive guide explores the multifaceted benefits of the intelligent heel and side lasting machine, detailing how it impacts labor, quality, efficiency, and the bottom line for modern footwear factories.

1. The Definitive End of the Hand-Pull Bottleneck

The most immediate and transformative benefit of the intelligent heel and side lasting machine is its ability to directly replace the manual hand-pull process.

In a traditional factory, hand-pulling required a large team of highly skilled workers. Each shoe was pulled individually. An operator would apply adhesive, manually stretch the leather around the heel seat and the waist (the arch area), and use lasting pincers to tack it down. This process was incredibly slow, highly dependent on the operator's physical strength, and acted as a severe bottleneck. Furthermore, as experienced workers aged or left the industry, factories found it increasingly difficult to maintain production speed and quality.

The intelligent heel and side lasting machine eliminates this bottleneck entirely. Using a combination of mechanical pincers and hydraulic pressure, the machine grips the upper, applies a predetermined amount of tension, and presses it flawlessly against the last. What used to take a skilled worker minutes of physical struggle is now accomplished in seconds by a machine, allowing the factory to flow massive volumes of shoes without the constant fear of a labor shortage.

2. Unprecedented Consistency and Quality (The "No Double Eyelid" Effect)

Human hands, no matter how skilled, cannot apply uniform pressure across every millimeter of the shoe's waist. The result is often uneven stretching, resulting in visible wrinkles, bulges, or the dreaded "double eyelid" effect at the heel knot.

Intelligent heel and side lasting machines incorporate features specifically designed to eliminate these defects:

Extrusion Side Angle Leveling: This technology actively avoids the "double eyelid" quality problem that is common at the heel knot. By precisely leveling the side angle, the machine ensures the upper lies perfectly flat against the last.

Press Edge Double Balance Attach Last: This dual interactive balance structure ensures that the machine fits the largest possible surface area of the last. It dynamically adjusts to the last's shape, ensuring maximum contact between the upper and the last.

Double Finger Force Flat Function: Instead of a single rigid press, the machine uses dual "fingers" to apply targeted pressure, flattening the upper and ensuring a wrinkle-free finish.

The result is a shoe that looks structurally sound, with a seamless waist and a perfectly formed heel counter. Because the machine applies the exact same pressure profile to every single shoe in a batch, the first pair and the thousandth pair are identical.

3. The "Intelligent" Advantage: Memory and Agility

What makes these machines truly modern is the "intelligent" component-the integration of PLC (Programmable Logic Controller) systems and auto-memory functions. This transforms a rigid piece of hardware into a flexible production tool.

The PLC Auto Memory Function

In the past, changing a machine from a size 36 to a size 42, or from a sports shoe to a dress shoe, required hours of manual recalibration. Technicians had to adjust mechanical stops, pressures, and timings by trial and error.

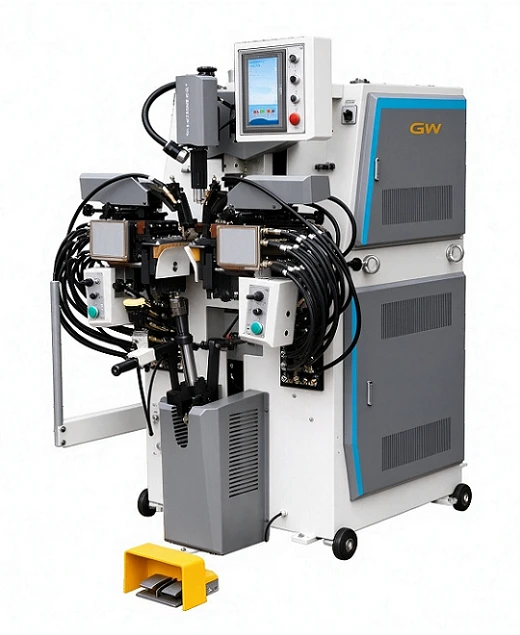

Modern machines (like the GW-780 series) feature a PLC Auto Memory Function capable of storing the precise mechanical and hydraulic parameters for up to 200 different shoe types. When production switches to a new style, the operator simply recalls the saved program from the touchscreen. The machine automatically adjusts its internal mechanisms (such as the last back highest adjustment, pressure settings, and stroke lengths) to match the new product in seconds.

This agility is a massive benefit for modern factories that are shifting towards "high-mix, low-volume" production. It allows factories to switch lines rapidly in response to market trends without losing valuable uptime.

Left & Right Foot Auto Exchange

While shoes look symmetrical, the inner and outer waist areas require different handling due to the anatomy of the foot. Many intelligent machines feature an Auto Left & Right Foot Exchange function. The machine automatically adjusts its mechanical action when switching from the left shoe to the right shoe, ensuring that the lasting on the inner and outer arches is uniformly compact and natural-looking.

4. Protecting the Most Sensitive Materials

High-end footwear often utilizes delicate materials-soft leathers, suede, or synthetic laminates. Applying too much pressure will crush the material; applying too little will leave it loose. The intelligent heel and side lasting machine is engineered to handle these materials with care.

Waist & Heel High/Low Pressure Control

Not all areas of the shoe require the same amount of pressure. The machine utilizes a two-stage High/Low Pressure function. It might use higher pressure at the rigid heel seat to lock the shape in place, and lower, gentler pressure along the flexible waist to avoid marking the leather.

Precision Hydraulics

The machine uses a Low-Temperature Hydraulic System that maintains oil temperature at approximately 50°C. This provides a massive benefit: it prevents the machine from overheating during continuous shifts. Stable temperatures mean that the hydraulic pressure remains exactly the same from the first hour of the shift to the tenth, ensuring that the material is never inadvertently crushed by fluctuating pressures.

Analog and True Tensioner

To handle varying leather thicknesses, the machine features an Analog and True Tensioner. This system allows for wide adaptability to different upper materials, ensuring that the pincers grip the leather securely without tearing it or leaving deep pinch marks.

5. Massive Labor Savings and Ergonomics

Beyond the direct replacement of the hand-pull process, these machines offer significant labor benefits across the factory floor.

The End of the "Skilled Worker" Monopoly

Intelligent heel and side lasting machines dramatically reduce the expertise required to operate the line. Because the machine handles the complex calculations, pressure distributions, and memory recalls, operators no longer need years of training. A new hire can be trained to load the machine, select the right program, and produce perfect shoes in a matter of days.

Improved Ergonomics

Hand-pulling was notorious for causing repetitive strain injuries (RSIs) to operators' shoulders, wrists, and backs. The machine takes over all the heavy lifting and physical stretching. Operators simply position the shoe and press a pedal. This results in lower injury rates, higher operator morale, and reduced absenteeism.

Single-Operator Efficiency

Because the machine automates the complex alignment and pressing, a single operator can often manage the loading and unloading process efficiently. The machine's rapid cycle times and consistent output mean that a smaller workforce can produce a significantly higher volume of shoes.

6. Enhancing the Final Product: Comfort and Durability

The benefits of intelligent lasting extend all the way to the end consumer.

Better Fit: Because the machine ensures the upper is tightly and evenly bonded to the last, the finished shoe accurately represents the designer's intended shape. The arch support is more pronounced, and the heel seat grips the foot securely, reducing heel slip.

Enhanced Durability: A tighter bond between the upper and the insole/sole means fewer gaps where moisture can enter or where the shoe can delaminate. The automated process eliminates weak spots that manual pulling might leave behind.

Aesthetic Appeal: A perfectly smooth waist and heel without wrinkles or puckering gives the shoe a premium, high-end look, commanding a higher price point in the market.

7. Stability and Machine Longevity

An often-overlooked benefit is the sheer robustness of these machines. Designed for mass production lines, they are built with Integrated Modularization for the circuits, making them highly durable and easy to maintain.

The combination of a low-temperature hydraulic system, precise directional control of the press cylinders (ensuring smooth speed and pressure), and integrated circuit modules means the machine experiences less wear and tear. This translates directly to higher Overall Equipment Effectiveness (OEE) and fewer unplanned maintenance stoppages.

Summary

The intelligent heel and side lasting machine is no longer a luxury for high-end factories; it is an essential tool for any manufacturer looking to compete in a global market demanding higher quality, faster delivery, and lower costs. By transitioning from manual hand-pulling to intelligent automation, factories unlock a level of precision and productivity that redefines the standard for modern shoemaking.
