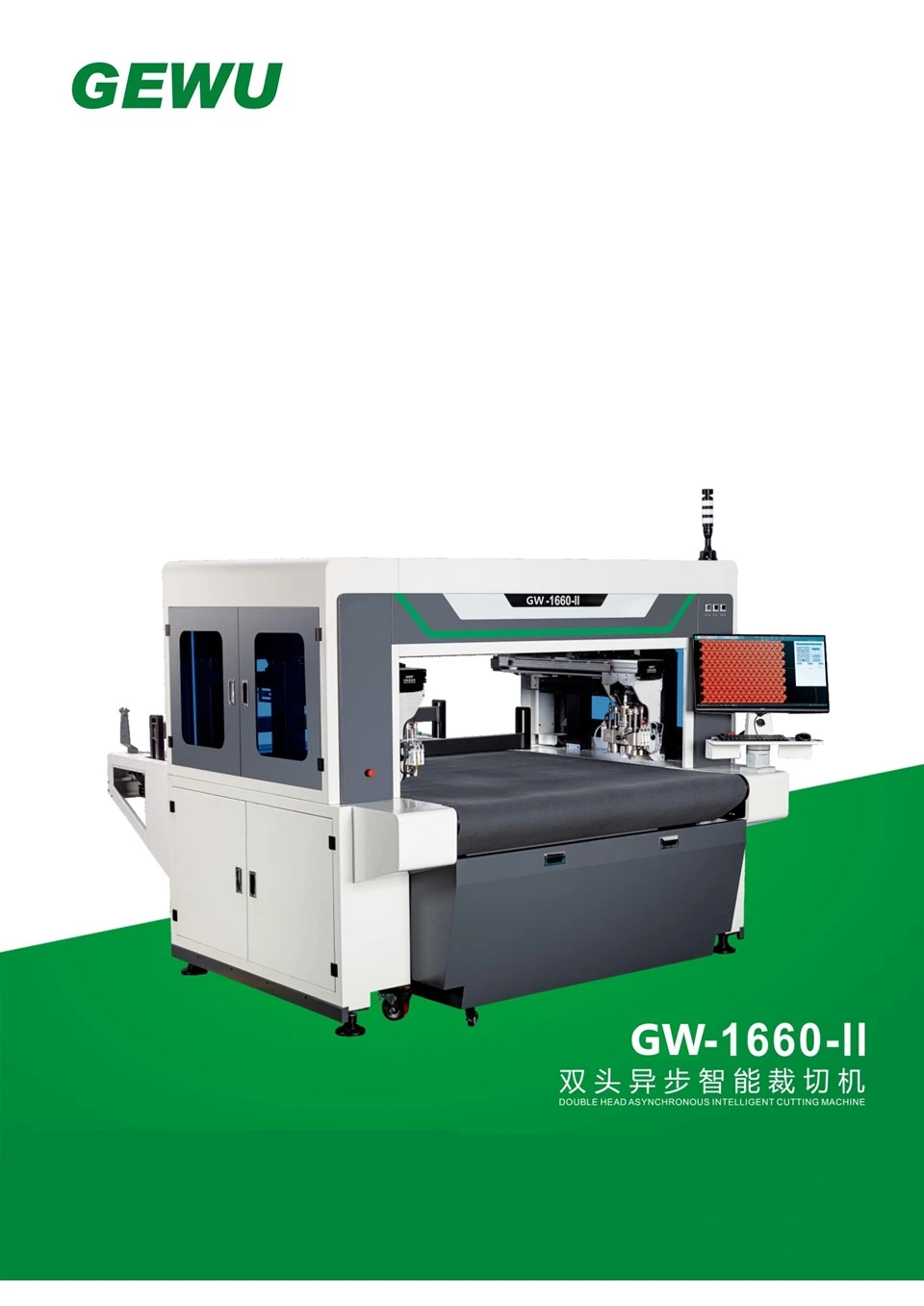

Shoe Material Cutting Machine for Footwear Manufacturing
CNC oscillating knife cutting system with double tool heads for shoe uppers, insoles, and soles. Cuts multilayer rolled flexible materials including artificial leather and industrial cloth with 0.05mm resolution.
Why Choose Our Shoe Material Cutting Machine
Double Tool Head System
Equipped with 2 sets of vibrating knives and 8 sets of punching knives. The double tool head asynchronous work system handles cutting and punching operations in a single pass.
High-Precision Transmission
High precision lead screw and imported servo motor deliver 0.05mm mechanical resolution. Screw drive ensures accurate, repeatable cuts across every production batch.
Continuous Production Flow
Automatic transmission with intelligent paging enables continuous and smooth operation. Efficient cutting with vacuum adsorption fixing for multilayer rolled flexible materials.
About This Shoe Material Cutting Machine
Our shoe material cutting machine is a CNC oscillating knife system designed for footwear manufacturers who need precise, repeatable cutting of multilayer rolled flexible materials. It handles artificial leather, industrial cloth, sponge materials, and other flexible or semi-rigid materials used in shoe uppers, insoles, and linings.
The machine features a double tool head configuration with 2 sets of vibrating knives and 8 sets of punching knives. The two tool heads work asynchronously, allowing cutting and punching operations to proceed simultaneously on the same work area. This reduces production steps and improves throughput.
The transmission system uses high precision lead screws and imported servo motors, delivering a mechanical resolution of 0.05mm. The fixed material mode uses inlet vacuum adsorption, holding materials flat during cutting without clamps or tape. The DOSO-CAM intelligent cutting system handles automatic layout, automatic identification of holes and inline features, and intelligent parameter coding.
Technical Specifications
The following parameters are based on the GEWU standard configuration. Custom configurations are available.
| Parameter | Specification |
|---|---|
| Work Area Dimension | 1600mm × 600mm |
| Machine Size | 3000mm × 2300mm × 2100mm |
| Total Power | 9.5KW |
| Machine Weight | 2350KG |
| Double Head / Cutter | Vibrating knife / 2 sets, Punching knife / 8 sets |
| Transmission System | High precision lead screw, imported servo motor |
| Operating Characteristics | Automatic transmission, intelligent paging, continuous and smooth operation. Efficient cutting, screw drive, double tool head asynchronous work. |
| Cutting Material | Multilayer rolled flexible materials (such as artificial leather and various industrial cloths, etc.) |
| Cutting Speed | 1–1100 mm/s |
| Cutting Thickness | Sponge material ≤35mm, Flexible material ≤20mm, Hard material ≤10mm |
| Fixed Material Mode | Inlet / Vacuum adsorption |
| Mechanical Resolution | 0.05mm |
| Instruction System | DOSO-CAM / Intelligent Cutting System |
| Compatible Format | DXF / PLT compatible with universal formats |
| Typesetting | Automatic layout / Automatic identification hole and inline / Intelligent parameters add code |
| CNC Panel | LCD, Keyboard, Mouse |
| Tool Head Vibration Frequency | 11,000–15,000 RPM |
| Operating Voltage | AC 220V ±10% 50/60Hz |
| Fan Operating Voltage | AC 380V ±5% 50/60Hz |
Note: The machine configuration can be customized. Contact us with your material specifications, maximum cutting dimensions, and production capacity requirements for a tailored proposal.
Applications
Shoe Upper Cutting
Precision cutting of artificial leather, PU, and industrial cloth uppers. Automatic layout optimizes material utilization across multilayer rolled materials.
Insole and Lining Cutting
Cutting of sponge, foam, and flexible lining materials. Vacuum adsorption holds thin materials flat without wrinkles or shifting.
Punching and Hole Making
8 sets of punching knives handle hole-making operations in the same pass as cutting. Automatic identification of holes and inline features simplifies programming.
Small-Batch and Custom Production
No physical dies required. Change from one shoe style to another by loading a new DXF or PLT file. Suitable for small-batch and customized production.
Customization & Delivery
We configure shoe material cutting machines to match your production requirements. When you work with us, you can specify:
- Cutting area - standard 1600mm × 600mm, or custom dimensions.
- Tool head configuration - vibrating knife, punching knife, or combined setup.
- Material fixing - vacuum adsorption with inlet configuration.
- Control software - DOSO-CAM intelligent cutting system with automatic layout and parameter coding.
- Voltage configuration - AC 220V or AC 380V based on your facility.
For delivery, typical lead time is 20–40 days after order confirmation, depending on configuration complexity. We provide installation guidance and commissioning support. Packaging uses export-standard wooden cases with moisture protection for ocean transport.
Frequently Asked Questions
What materials can this cutting machine handle?Need a Shoe Material Cutting Machine for Your Factory?
Tell us your materials, maximum cutting dimensions, and production capacity. We will recommend the right configuration and provide a detailed quotation.
