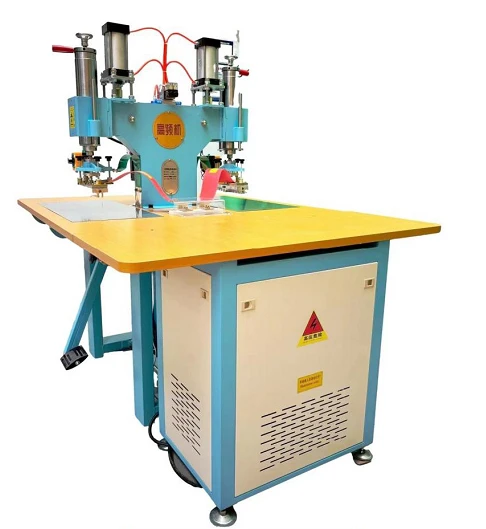

Our Double Head High Frequency Welding Machine (also known as Dual-head HF / RF Welder) is professional footwear & bag manufacturing equipment, widely used for seamless welding, embossing, logo stamping and cutting of TPU, PVC, PU synthetic leather for shoe uppers, shoe labels, insoles and handbags.
With dual independent working heads, one operator can handle two stations alternately, greatly boosting production output and saving labor cost compared with single-head high frequency machines. It delivers stable high-frequency bonding, clean cutting edges and consistent embossing texture for mass shoe factory production.
Key Features
✅ Dual-head alternating working design, double productivity, one worker for two stations
✅ Equipped with sensitive spark protection system, protects molds from burn damage
✅ Adjustable welding time, pressure and HF power, easy to tune for different materials
✅ Solid machine frame, stable performance for long continuous running
✅ Available in pneumatic or hydraulic type to meet different pressure requirements
✅ Wide compatibility: works for TPU, PVC, PU, synthetic leather & coated fabric
✅ Multi-function: seamless welding, embossing, logo stamping, edge cutting & forming
Applications
✅ Sports shoe upper seamless welding & embossing
✅ TPU shoe logo, brand patch and label stamping
✅ Insole embossing and shaping
✅ Handbag & leather goods embossing, pattern pressing
✅ PVC/TPU accessories welding and cutting
| Working voltage | 380V/50HZ |
| Max.H.F.Capacity | 8.00kw |
| Max. pressure | 1200kgs |
| Working area | 1000*400mm |
| Compressed air input | 0.5-0.7mpa |
| Oscillation frequency | 27.12mhz |
| Dimensions | 1600*1170*1700mm |
FAQ
Q: What materials can this double head high frequency machine process?
A: It works for thermoplastic materials including TPU, PVC, PU, synthetic leather, coated fabric. It is widely used for shoe uppers, shoe labels, insoles, handbag patterns and plastic accessories. It cannot process pure cotton, canvas and non-thermoplastic fabrics.
FAQ
Q: What is the advantage of double-head design compared with single-head HF machine?
A: Two working stations can work alternately. While one head is heating and welding, the operator can load/unload materials on the other station. It greatly improves production efficiency and saves labor cost.
FAQ
Q: Can this machine do both embossing and cutting?
A: Yes. With matched molds, it can complete seamless welding, logo embossing, pattern stamping and edge cutting in one operation.
FAQ
Q: Pneumatic or hydraulic type, which one should I choose?
A: Pneumatic type is cost-effective for regular shoe upper embossing. Hydraulic version provides stronger and more stable pressure, recommended for deep embossing and thicker materials.
FAQ
Q: Do you supply molds together with the machine?
A: Machine and molds are separate. We can customize molds according to your drawings or samples. We also offer free sample testing before you place the order.
FAQ
Q: Can you send technician for on-site installation and training?
A: We supply online video operation training for free. On-site service is available upon request; related travel cost will be borne by buyers.
FAQ
Q: Is this new machine or second-hand?
A: This listing is for brand-new double head high frequency welding machine. We also supply used HF machines, please contact us separately for second-hand quotation.
Contact us now to get machine quotation and free sample testing service. We provide reliable shoe-making HF machines and customized molds for footwear and bag factories.
