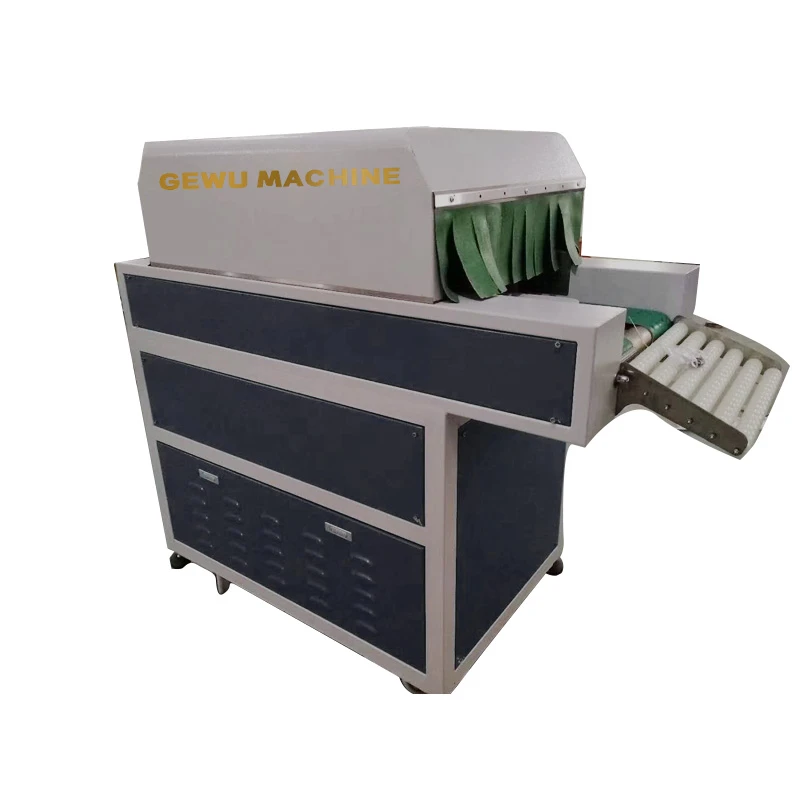

Outsole Wrinkle Eliminating Machine for Shoe Manufacturing

Industrial hot air system for removing wrinkles from rubber and EVA outsole surfaces. V-type concentrated air outlet targets wrinkled areas precisely. High capacity of 2400–3200 pairs per 8-hour shift.

Request a Quote View Specifications

Why Choose Our Outsole Wrinkle Eliminating Machine

V-Type Concentrated Hot Air Outlet

Special V-shaped air outlet focuses hot air directly on wrinkled areas, improving wrinkle removal efficiency and localizing heat treatment to avoid affecting surrounding sole areas.

High Production Capacity

Processes 2400–3200 pairs per 8-hour shift with a total power of 3.50kW. The miniature heat source rapidly reaches working temperature with lower energy consumption.

Production Line Integration

Built-in production line pulley allows direct connection with adjacent shoe machinery. Seamless integration reduces manual labor-only two operators needed compared to traditional lifting machines.

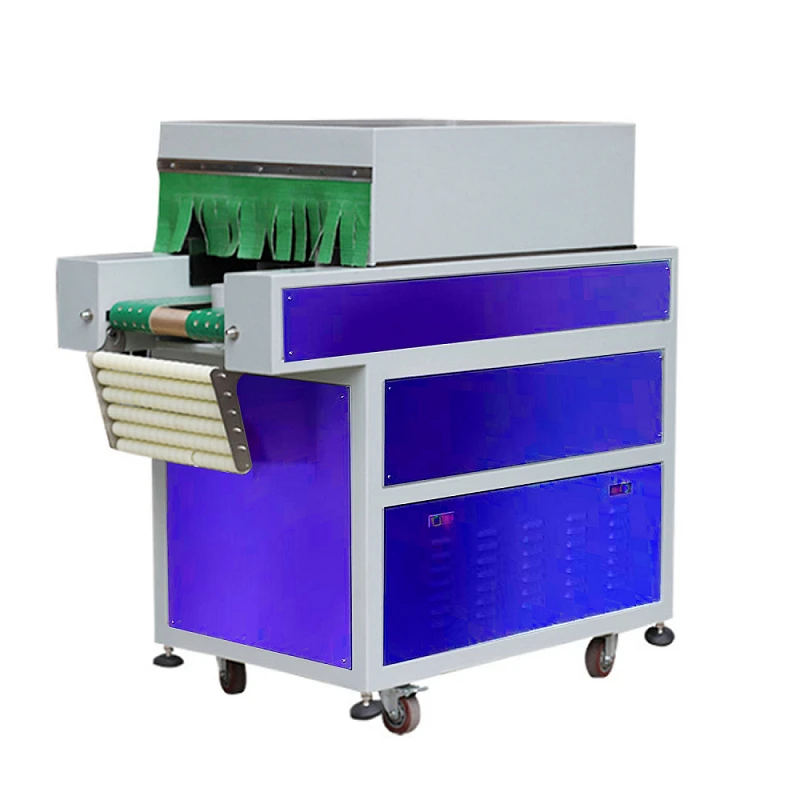

About This Outsole Wrinkle Eliminating Machine

Our outsole wrinkle eliminating machine is designed for footwear manufacturers who need reliable sole surface finishing after molding. It removes wrinkles and smooths the surface of rubber and EVA outsoles using precisely directed hot air, improving final product appearance and quality.

The machine adopts a special V-type air outlet that concentrates heat directly on wrinkle-prone areas, achieving remarkable wrinkle removal effects. Hot air reflow technology uses heating tubes with blower-assisted air circulation that recirculates hot air within the oven, maintaining uniform and stable temperature conditions crucial to consistent sole finishing.

A miniature heat source rapidly reaches working temperature with lower energy consumption. The optimized air duct design minimizes pressure loss with shortened, streamlined ducts. The production line pulley system enables seamless connection with adjacent shoe machinery, reducing manual labor requirements and increasing assembly line efficiency.

Technical Specifications

The following parameters are based on the standard configuration. Custom configurations are available.

Parameter	Specification
Working Voltage	415V / 50HZ
Power	3.50kW
Capacity	2400–3200 pairs / 8 hour
Dimension	1400 × 730 × 1350mm
Heating Method	Hot air with V-type concentrated outlet
Temperature Control	Hot air reflow system for uniform distribution
Integration	Production line pulley design, direct connection with adjacent equipment
Labor Requirement	2 operators (vs. traditional machines requiring more)

Note: The machine is a non-standard product. We configure air outlet type, conveyor integration, and heating capacity according to your sole materials and production line layout. Contact us with your requirements for a tailored proposal.

Applications

Rubber Outsole Finishing

Removes wrinkles and smooths the surface of molded rubber outsoles after demolding. V-type air outlet targets wrinkled areas precisely without affecting surrounding sole surfaces.

EVA Sole Surface Treatment

Smooths EVA foam outsole surfaces after molding. Hot air treatment eliminates surface irregularities and improves appearance for athletic and casual footwear.

Production Line Integration

Built-in pulley system connects directly with adjacent shoe machinery for continuous workflow. Reduces manual handling and improves assembly line efficiency.

High-Volume Sole Production

Processes 2400–3200 pairs per 8-hour shift, suitable for medium to high-volume footwear manufacturing lines. Miniature heat source enables fast heating with lower energy consumption.

Customization & Delivery

We configure outsole wrinkle eliminating machines to match your production line. When you work with us, you can specify:

Air outlet configuration - V-type concentrated outlet or customized air distribution based on sole geometry.
Conveyor integration - production line pulley design for direct connection with existing equipment.
Heating capacity - adjusted for your production speed and sole material type.
Voltage configuration - 415V/50HZ standard, customizable for different regional power supplies.
Line layout adaptation - configuration to match your factory floor plan and workflow.

For delivery, typical lead time is 20–40 days after order confirmation, depending on configuration complexity. We provide installation guidance and commissioning support. Packaging uses export-standard wooden cases with moisture protection for ocean transport.

Frequently Asked Questions

What is the purpose of an outsole wrinkle eliminating machine?

This machine removes wrinkles and smooths the surface of rubber and EVA outsoles after molding. It uses precisely directed hot air to eliminate surface irregularities, improving the final product appearance and quality.

How does the V-type air outlet improve wrinkle removal?

The V-shaped outlet concentrates hot air directly on wrinkled areas, localizing heat treatment to the affected zone. This improves efficiency and prevents unnecessary heating of surrounding sole areas.

Can this machine integrate with my existing production line?

Yes. The machine features a production line pulley design that allows direct connection with adjacent shoe machinery. This enables continuous workflow and reduces manual handling. Traditional machines require more operators; our integration requires only two.

What is the production capacity of this machine?

The machine processes 2400–3200 pairs per 8-hour shift, depending on sole size and material type. This makes it suitable for medium to high-volume footwear manufacturing lines.

What is the typical lead time?

Standard configurations are typically delivered within 20–40 days after order confirmation. Custom or complex configurations may require longer. We confirm the exact schedule during the quotation stage.

Do you provide installation and training?

Yes. We provide installation guidance, commissioning support, and operator training. Our team can assist remotely or on-site depending on your location and requirements.
