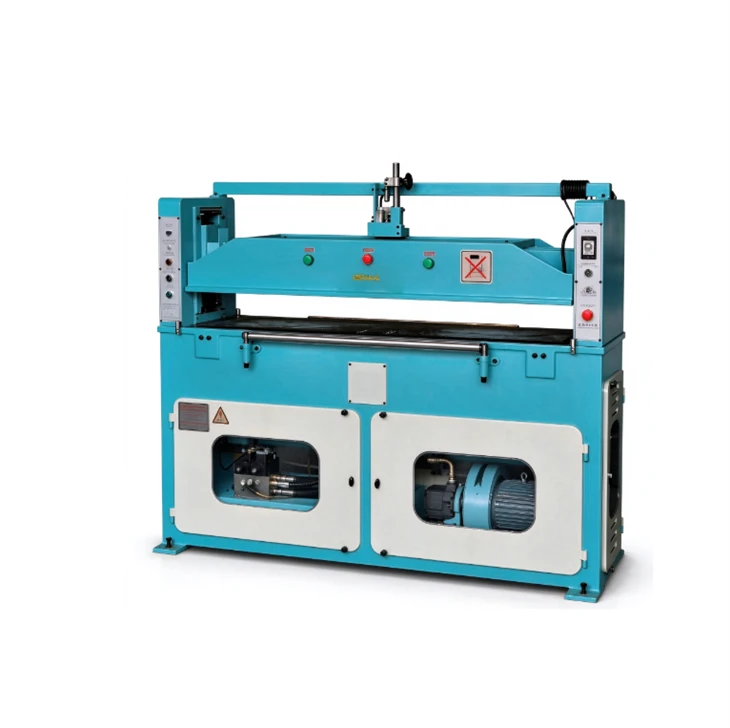

Hydraulic Plane Cutting Machine for Shoes and Sole Materials
Heavy-duty hydraulic press for cutting shoe soles, uppers, and lining materials. Features two-hand safety operation, accurate cutting point setting, self-lubricating spindle bearing, and automatic cutting force control. Available in 30T and 35T models.
Why Choose Our Hydraulic Plane Cutting Machine
Two-Hand Operation for Maximum Safety
Both hands are required to activate the cutting cycle, ensuring the operator's hands are safely away from the cutting beam. This built-in safety feature prevents accidental injuries and complies with standard factory safety requirements.
Accurate & Fast Cutting Point Setting
The machine features a cutting point setting function that allows operators to adjust the exact depth and position of the cut quickly. The automatic control system presets the cutting force, keeping results consistent across different materials.
Self-Lubricating Spindle Bearing
The spindle bearing uses an automatic self-lubricating system, eliminating the need for manual refueling. This saves labor, reduces maintenance downtime, and keeps the machine running smoothly over long production shifts.
About This Hydraulic Plane Cutting Machine
Our hydraulic plane cutting machine is designed for the footwear industry, providing the hydraulic force needed to cut thick and tough materials used in shoe soles, uppers, and insulations. It is a staple machine for any shoe factory's cutting department.
Safety and precision are built into the core design. The machine requires two-hand operation to activate the cutting stroke, protecting workers from accidental crush injuries. The cutting point setting function allows operators to set the cutting position accurately and quickly. Furthermore, the self-control system allows presetting the cutting force, ensuring the hydraulic press applies exactly the right amount of pressure without over-cutting or damaging the material.
Maintenance has also been simplified. The spindle bearing features a self-lubricating system, meaning no manual refueling is required, which saves labor and reduces downtime. The machine is available in two models: the GW-830 with a 30-ton maximum cutting force, and the GW-835 with a 35-ton maximum cutting force. Both models feature a 50–150mm stroke and a 4HP/3KW motor.
Technical Specifications
The following parameters are based on the standard models. Custom configurations are available.
| Parameter | GW-830 | GW-835 |
|---|---|---|
| Model | GW-830 | GW-835 |
| Machine Dimensions | 1845 × 630 × 1470 mm | 1850 × 730 × 1700 mm |
| Cutting Area | 1600 × 510 mm | 1600 × 610 mm |
| Max. Cutting Force (M.C.F) | 30T | 35T |
| Stroke | 50 – 150 mm | 50 – 150 mm |
| Motor Power | 4HP / 3kW | 4HP / 3kW |
| Weight | 1500 kg | 1750 kg |
Note: Voltage configuration and specific tooling setup can be discussed. Contact us with your material types and output target to determine which model is suitable for your factory.
Applications
Shoe Sole Cutting
Die-cutting of rubber, EVA, PU, and other sole materials. The 30T and 35T hydraulic pressure options provide ample force to cut thick sole sheets cleanly.
Shoe Upper and Lining Cutting
Cutting leather, synthetic leather, fabric, and lining materials. The automated cutting force control ensures delicate materials are cut precisely without being crushed.
High-Volume Mass Production
The 1600mm wide cutting area allows multiple dies to be placed simultaneously. Combined with the smooth hydraulic stroke, it delivers high output for mass-production shoe factories.
Multi-Material Cutting
Suitable for cutting various flexible and semi-rigid materials used in footwear, including sponge, foam, textile, and composite sheets.
Customization & Delivery
We configure hydraulic plane cutting machines to match your production line. When you work with us, you can specify:
- Model Selection - GW-830 (30T) or GW-835 (35T) based on your maximum material thickness.
- Voltage Configuration - standard industrial voltage, customizable for your local power supply.
- Cutting Board - matched to your standard die sizes and cutting area requirements.
- After-sales Support - operation video, manual, and remote technical guidance for maintenance and safety procedures.
For delivery, typical lead time is 20–40 days after order confirmation, depending on the model and configuration. Packaging uses heavy-duty export-standard wooden cases to protect the machine during ocean transport.
Frequently Asked Questions
How does the two-hand operation ensure safety?Need a Hydraulic Plane Cutting Machine for Your Factory?
Tell us the materials you need to cut, the maximum thickness, and your required cutting area. We will recommend the right model (GW-830 or GW-835) and provide a detailed quotation.
