Intelligent Memory Heel and Side Lasting Machine for Automated Waist Lasting

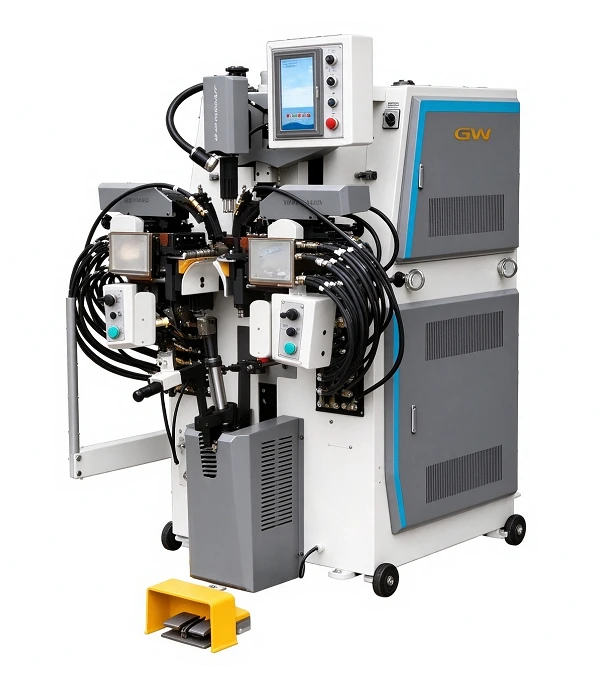

GW-780E(T.D.P.G) Series. This machine is a kind of middle and back help machine which is specially developed for the traditional production line to directly replace the hand-pulled waist help process. Reduce labor and increase efficiency. Suitable for sports and ladies leather shoes.

Request a Quote View Specifications

Four Core Advantages for Replacing Manual Labor

Directly Replace Hand-Pulled Process

Specially developed to replace the traditional manual hand-pulled waist process. Delivers consistent, machine-controlled pressure that humans cannot match, significantly reducing labor costs.

Left & Right Foot Auto Exchange

Features a unique auto exchange function, making the inner and outer waist upper lasting better and more compact. Essential for high-efficiency production lines.

Ideal for Frequent Style Changes

Use for usually change shoe type production line. The intelligent memory system makes switching between different shoe sizes and styles incredibly fast and easy.

PLC Auto Memory Function

Can store up to 200 kinds of shoe types. Auto recall settings to minimize adjustment time and eliminate operator guesswork.

Revolutionizing the Waist Lasting Process

In traditional shoemaking, the waist and heel area is often shaped using a "hand-pulled" process, where a skilled operator physically stretches and glues the upper to the last. This method is highly dependent on operator skill, physically exhausting, and inconsistent. The GW-780E Intelligent Memory Heel and Side Lasting Machine is a revolutionary solution designed specifically to directly replace this hand-pulled process.

By utilizing advanced mechanical pressure and intelligent controls, the GW-780E shapes the middle and back of the shoe with a level of precision and consistency that manual labor cannot achieve. It is highly suitable for sports shoes and ladies' leather shoes, providing a smooth, wrinkle-free finish every time.

What truly sets the GW-780E apart is its suitability for production lines that frequently change shoe types. Thanks to the PLC Auto Memory Function and the Auto Left/Right Foot Exchange, switching from one size or style to another is seamless. The machine remembers the exact settings for up to 200 shoe types, so your operators can focus on production, not on complex machine adjustments. It is the ultimate tool for modern, agile footwear manufacturing.

14 Special Skills for Precision and Stability

The GW-780E is equipped with 14 core technical features, ensuring that every curve of the heel and waist is perfectly lasted without manual intervention.

01 Double Finger Force Flat Function

Press enough pressure to the upper, let the lasting more flat.

02 Last Back Highest Adjustment

Wide range of last high adjustment. Children's shoes can be used to high tops.

03 Analog and True Tensioner

Wide range adaption, last data, attached toe band research by computer simulation.

04 Extrusion Side Angle Leveling

Avoid heel knot double eyelid quality problems. Improve lasting quality.

05 Low Temperature Hydraulic System

Oil temperature keep about 50°C. Ensure stable and improve usage life.

06 Last Self-Balance Stock

Auto balance according to the last shape, better for lasting flat.

07 Circuit Integrated Modularization

Durable and easily maintain. Simplifies troubleshooting and repairs.

08 Pincer Lasting Pull Rear Strap

Pincer pull the heel, the upper more compact.

09 Press Edge Double Balance Attach Last

Dual interactive balance structure, the largest surface is fitted last type, improve lasting quality.

10 Center Seat Automatically Moves

Optional function. Adjust the heel, waist joint is more natural, this function can help quickly replace the wiper.

11 PLC Auto Memory Function

Can store 200 kinds of shoe type. Adjust auto use, reduce adjustment time.

12 Left & Right Foot Exchange Auto

Let the inner & outer waist upper better lasting and more compact.

13 Waist, Heel Lasting High/Low Pressure

Use two stage press, can make lasting better.

14 Press Cylinder Directional Precise Control

Double hydraulic cylinder, ensure suitable speed and pressure.

Technical Specifications

Specific electrical and pneumatic parameters may vary depending on the model (T.D.P.G) and regional requirements.

Parameter	Specification
Model Series	GW-780E (T.D.P.G)
Application	Heel and Side Lasting for sports shoes, ladies leather shoes
Core Function	Directly replace the hand-pulled waist help process
Special Skills	14 (focusing on automated waist lasting and precision)
Control System	PLC Auto Memory Function (Stores 200 shoe types)
Key Automation	Auto Left & Right Foot Exchange
Hydraulic System	Low temperature hydraulic system (oil temp ~50°C)
Voltage / Power	Confirm with factory based on regional configuration

Note: The machine configuration can be customized. Contact us with your shoe types, production capacity, and factory layout for a tailored proposal.

Applications

Replacing Hand-Pulled Waist

Eliminates the need for highly skilled manual laborers to pull and glue the waist, ensuring consistent, machine-grade quality across the entire batch.

Sports Shoes

Perfect for the complex heel counters and side contours of athletic footwear, ensuring a tight and durable bond.

Ladies Leather Shoes

Delicate handling and precise positioning for lightweight fashion footwear, preventing wrinkles and material damage.

Frequent Style Changes

With PLC memory for 200 shoe types, it is the ultimate machine for factories that switch production lines frequently.

Frequently Asked Questions

1. How does the GW-780E replace the hand-pulled waist process?

Instead of relying on an operator's physical strength to pull and glue the upper to the waist, the GW-780E uses precise hydraulic pressure, dual finger force flat functions, and pincer lasting to mechanically shape the upper. This ensures a tighter, more consistent fit while eliminating the need for expensive manual labor.

2. Is this machine suitable for a factory that changes styles frequently?

Absolutely. It was specifically designed for production lines that usually change shoe types. The PLC Auto Memory function stores the settings for up to 200 shoe types, allowing operators to switch styles in seconds without complex manual adjustments.

3. What does the "Left & Right Foot Auto Exchange" do?

Shoes are not perfectly symmetrical, requiring different handling for the inner and outer waist. This function automatically adjusts the machine's mechanical action to fit both left and right shoes seamlessly, ensuring that the lasting is uniform and compact on both sides.

4. How does the machine prevent damage to delicate leather?

It features several protective technologies, including the "Extrusion Side Angle Leveling" to avoid double eyelid problems at the heel, and the "Press Edge Double Balance Attach Last" mechanism. Combined with the two-stage High/Low pressure control, it ensures a snug fit without crushing or marking the material.

5. What type of hydraulic system is used?

The machine utilizes a low-temperature hydraulic system that keeps the oil temperature at approximately 50°C. This ensures highly stable operation, prevents overheating, and significantly extends the lifespan of the hydraulic components.
