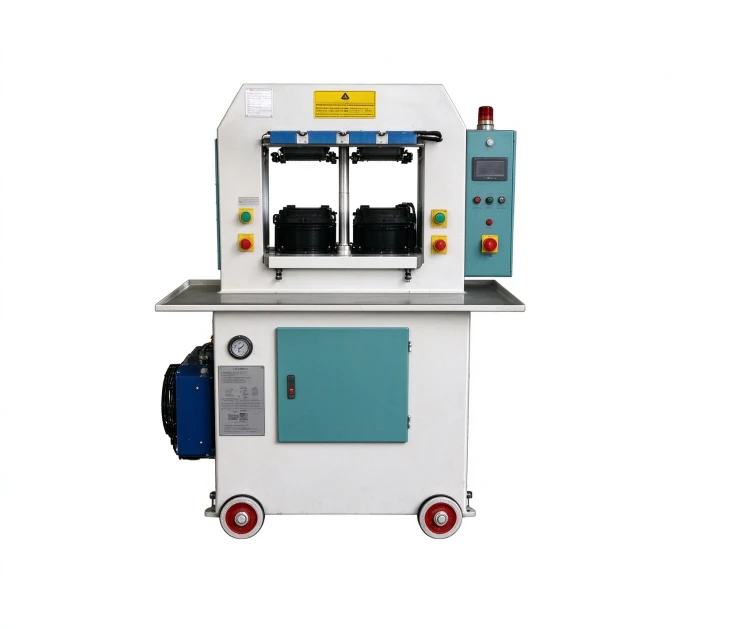

GW-316F Double-station Midsole Molding Machine

A new generation of double-station insole moulding equipment. It features a double-cylinder and plunger pump system to pressurize quickly, efficiently shaping flat midsoles into specified 3D forms.

Request a Quote View Specifications

About the GW-316F Molding Machine

The GW-316F is a highly efficient, new generation double-station insole moulding machine. It is specifically designed to take a flat insole placed within a mold and press it into a precise, specified shape.

By adopting a dual-station and double-cylinder design, alongside a high-performance plunger pump, this machine rapidly builds pressure to speed up the entire molding process. This results in excellent shaping performance and higher output for footwear factories.

Key Features

Fast Pressurization

Adopts a double-station and double-cylinder design. Combined with the plunger pump, it pressurizes quickly, making the flat insole in the mold into a specified shape swiftly.

Plunger Pump for Better Speed

Equipped with a high-quality plunger pump, which delivers a faster speed and significantly better overall performance compared to standard pump configurations.

60-Ton High Pressure

Equipped with an enlarged cylinder that provides 60 tons of pressing pressure. This immense force brings a better molding effect, ensuring sharp details and durable shapes.

Isolated Oil Tank

The isolated tank design effectively keeps the hydraulic oil from splattering, ensuring the machine remains clean and reducing the risk of oil contaminating the product.

Independent Cooling System

Features an independent cooling system that keeps the oil temperature stable during long production runs. Stable oil temperature guarantees consistent product quality.

Applications & Specifications

Ideal for footwear manufacturing lines requiring high-efficiency midsole molding and shaping.

Parameter	Specification
Model	GW-316F
Machine Type	Double-station Insole Moulding Machine
Application	Making flat insole in mold into a specified shape
Pressing Pressure	60 Tons (enlarged cylinder)
Working Mechanism	Double-station, double-cylinder
Pump Type	Plunger pump (faster speed)
Hydraulic System	Isolated oil tank design
Cooling System	Independent cooling system

Note: For detailed technical parameters (such as motor power, dimensions, and weight), please refer to the attached detailed parameters or contact our sales team for the latest specification sheet.

Frequently Asked Questions

What is the function of the plunger pump?

The plunger pump provides a faster pressure build-up compared to standard gear pumps. This means the dual cylinders can pressurize quickly, speeding up the cycle time and improving your overall production efficiency.

What is the advantage of the 60-ton pressure?

The 60-ton pressure from the enlarged cylinder ensures that the midsole material is pressed firmly into the mold, achieving a better molding effect, precise shapes, and better durability.

How does the cooling system affect production quality?

Continuous pressing generates heat. The independent cooling system maintains a stable oil temperature, preventing the hydraulic system from overheating. This ensures that the pressing force remains consistent and product quality is guaranteed.
