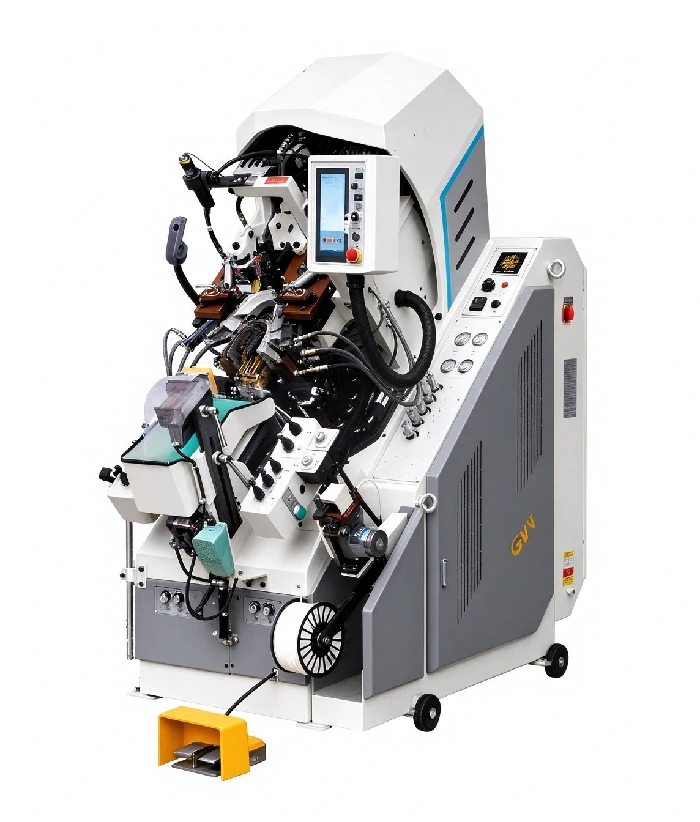

Gravity Intelligent Toe Lasting Machine for Heavy and Smart Production
GW-980E(MA/B)(T.D.P.G) Series. A practical machine updated from traditional heavy-duty models. Reduces the expertise of technicians and operator dependence. Equipped with GW-V3.0 OS, PLC memory, and 18 special skills. Ideal for labor, skate, Goodyear, and sports shoes.
Five Core Advantages for Smart Heavy-Duty Lasting
GW-V3.0 Operating System
Brand new operating system. More understandable, more memory, easily operate. Significantly reduces the learning curve for operators.
Ultra-Short Adjustment Time
Starting from the essence of adjustment efficiency, the operation and debugging modes are simpler and more convenient, reducing downtime.
Electro-Hydraulic Double Control
High-quality lasting skill achieved through advanced electro-hydraulic double control bonding technology. Ensures precision and stability.
Protect Upper Technology
Advanced mechanisms prevent the shoe upper from being damaged or overstretched during the high-pressure lasting process.
Auto Cement System
The automatic cementing system saves a large amount of labor on the production line and improves the overall molding quality.
Smart Efficiency: 23 Minutes 05 Seconds Total Adjustment
Heavy-duty machines are traditionally difficult to adjust. The GW-980E changes this by integrating the GW-V3.0 system and PLC memory, drastically reducing the time required to switch between different heavy shoe styles.
Total Comprehensive Adjustment Time Comparison
The Intelligent Evolution of Heavy-Duty Lasting
The GW-980E is a practical machine updated from traditional heavy-duty toe lasting models. It represents the intelligent evolution of gravity-lasting equipment. Historically, heavy-duty machines required immense physical strength and specialized technical knowledge to adjust. The GW-980E removes these barriers by improving upon traditional techniques and integrating a highly sophisticated smart control system.
By introducing the PLC control system with memory and other expansion functions, the GW-980E reduces operator dependence and makes the machine much more specific about what each feature does. Operators no longer need to rely on trial-and-error to adjust the machine. The system stores the parameters for up to 200 sets of lasts, allowing for instant recall of settings.
Whether you are producing heavy labor shoes, specialized Goodyear shoes, durable skate shoes, or standard sports shoes, the GW-980E delivers exceptional results. The Electro-Hydraulic Double Control Bonding ensures secure adhesion even on the thickest materials, while the Protect Upper Technology ensures that even delicate leathers are not damaged under pressure.
18 Special Skills Engineered for Smart Heavy-Duty Lasting
The GW-980E is equipped with 18 core technical features, focusing on heavy-duty stability, digital memory, and lasting precision.
Tool-free, quick and convenient replacement of the toe band.
Change the pincers rapidly without the need for any tools.
Quickly adjust the forward and backward distance between the supporter and the first pincer.
Change the wiper without any tools. Fast and highly convenient maintenance.
Quick and easy manual adjustment of the head stock position without requiring tools.
More understandable, more memory, easily operate. Provides a highly intuitive interface.
Can store 200 sets of lasts. Auto adjust at any time, saving a lot of time adjusting the machine.
Deflect shoe skill. The radian is the same as the toe, guaranteeing fast and compact lasting.
Highly intuitive design that is easy to remember and quick to adjust for different pressures.
Optional function. Ensures the lasting upper does not bounce, improving overall quality.
Allows the first pincer to slide, letting the upper move freely and preventing cracks.
The supporter ascends in two stages, reducing rebound and preventing the shoe upper from breaking.
Optional auto conversion for left and right feet, improving the length and quality of the bonding side.
The waist angle attaches automatically, significantly improving the lasting quality around the heel.
Utilizes data analysis to improve the precision and quality of the lasting process.
Optional function. Makes waist lasting match much better to the last.
Automatically fuses shoe lasts for the left and right foot, boosting both quality and speed.
Saves a massive amount of labor on the production line and improves the molding quality.
Technical Specifications
Specific electrical and pneumatic parameters may vary depending on the model (T.D.P.G) and regional requirements.
| Parameter | Specification |
|---|---|
| Model Series | GW-980E(MA/B) (T.D.P.G) |
| Application | Leather shoes, sports shoes, casual shoes, labor shoes, skate shoes, Goodyear shoes |
| Special Skills | 18 (including heavy-duty features, tool-free changeover) |
| Operating System | GW-V3.0 Operate System |
| Memory Capacity | 200 sets of lasts (PLC memory function) |
| Bonding Technology | Electro-hydraulic double control bonding |
| Cementing System | Auto cement system |
| Total Adjustment Time | 23 minutes 05 seconds (vs. 97 minutes traditional) |
| Voltage / Power | Confirm with factory based on regional configuration |
Note: The machine configuration can be customized. Contact us with your shoe types, production capacity, and factory layout for a tailored proposal.
Applications
Labor Shoes
Built to withstand the thick, rigid materials used in heavy-duty safety and work footwear, ensuring deep and secure bonds.
Goodyear Shoes
Perfect for the complex, heavy structures of Goodyear welted footwear, providing the immense pressure required.
Skate Shoes
Handles the extreme pressure required to last the thick suede and multi-layer canvas of skate shoes.
Leather & Sports Shoes
Highly versatile, delivering premium quality results for high-end leather shoes and sports footwear.
