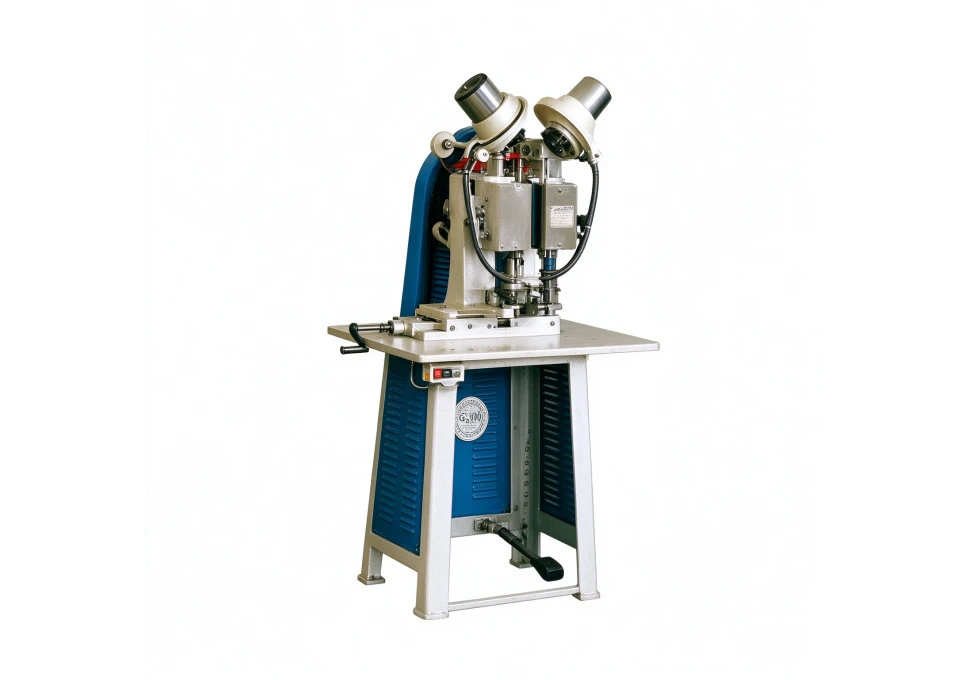

GW-100 Twin-head Eyeletting Machine for Paper & Packaging

An industrial-grade double-head eyelet machine designed for efficient riveting of paper bags, packaging boxes, and other similar products. Features turntable dividing, automatic rail feeding, and adjustable head distance for high-efficiency production.

Request a Quote View Specifications

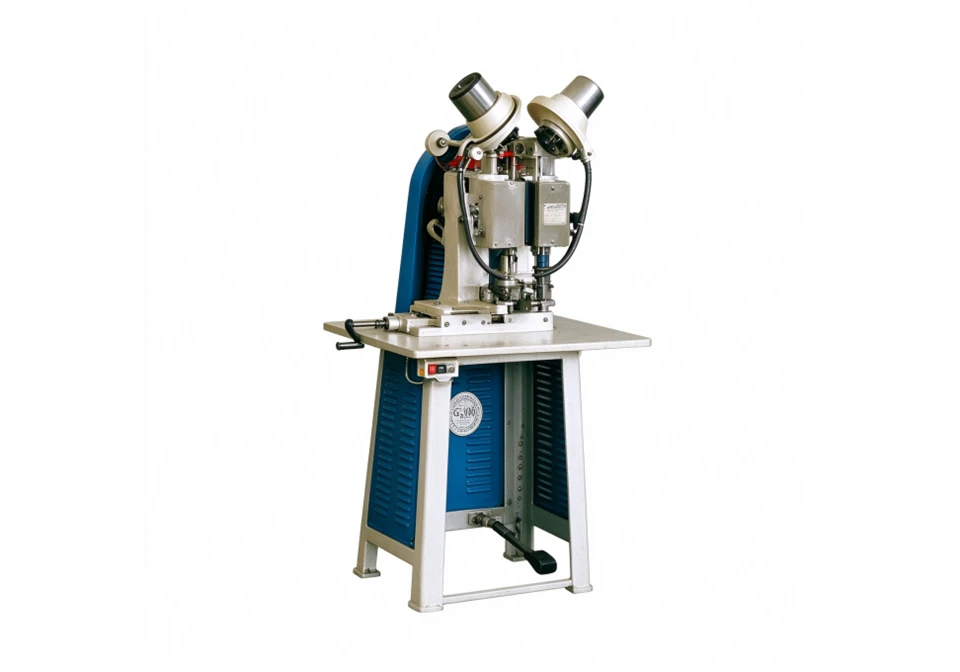

About the GW-100 Eyeletting Machine

The GW-100 adopts a dual-head working principle, allowing it to rivet two eyelets simultaneously in a single operation. The distance between the two heads can be adjusted easily according to your specific product requirements.

This machine is highly versatile and is primarily used for paper bags, packaging boxes, and other related industries that require secure and uniform eyelet placement. By combining dual-head riveting with automatic feeding, the GW-100 significantly improves working efficiency while maintaining accurate positioning.

Key Features

Turntable Dividing & Auto Feeding

Adopts a turntable for dividing materials, combined with a rail conveying automatic feeding system. This streamlines the workflow and reduces manual handling time.

Adjustable Head Distance

The distance between both heads is adjustable. Since both heads are bound at the same time, this dual-action capability improves working efficiency significantly.

Accurate Positioning

Engineered for accurate positioning to ensure a good and consistent eyelet effect on every piece, reducing material waste and rework.

Reliable Performance

Built for simple operation and reliable performance, making it an ideal choice for factories looking to upgrade their paper packaging production line.

Applications & Specifications

Our twin-head eyeletting machine is widely used in the paper packaging industry for securing handles and reinforcing holes.

Parameter	Specification
Model	GW-100
Machine Type	Twin-head Eyeletting Machine
Application	Paper bags, packaging boxes, and other related industries
Working Method	Dual-head simultaneous riveting
Feeding System	Turntable dividing, rail conveying automatic feeding
Distance Between Both Heads (S)	60–160 mm
Distance Between Both Heads (L)	120–220 mm
Key Features	Adjustable head distance, accurate positioning, simple operation, reliable performance

Note: For additional technical parameters (such as dimensions, motor power, and weight), please refer to the attached detailed parameters or contact our sales team for the latest specification sheet.

Frequently Asked Questions

What is the difference between the (S) and (L) models?

The difference lies in the adjustable distance between the two heads. The standard/small (S) version allows for a head distance of 60–160 mm, while the large (L) version allows for a wider distance of 120–220 mm. You can choose the one that fits your typical packaging dimensions.

Can the machine punch both eyelets at the same time?

Yes. The machine adopts a dual-head working system, which means both eyelets are bound/riveted at the same time. This dual-action process is what improves the overall working efficiency.

What materials can this machine process?

It is primarily designed for paper bags, packaging boxes, and similar paper-based products that require eyelets for handles or ventilation holes.

Upgrade Your Packaging Production Line

Tell us your paper bag sizes and target head distance (S or L). We will recommend the best configuration and provide a detailed quotation for the GW-100.
