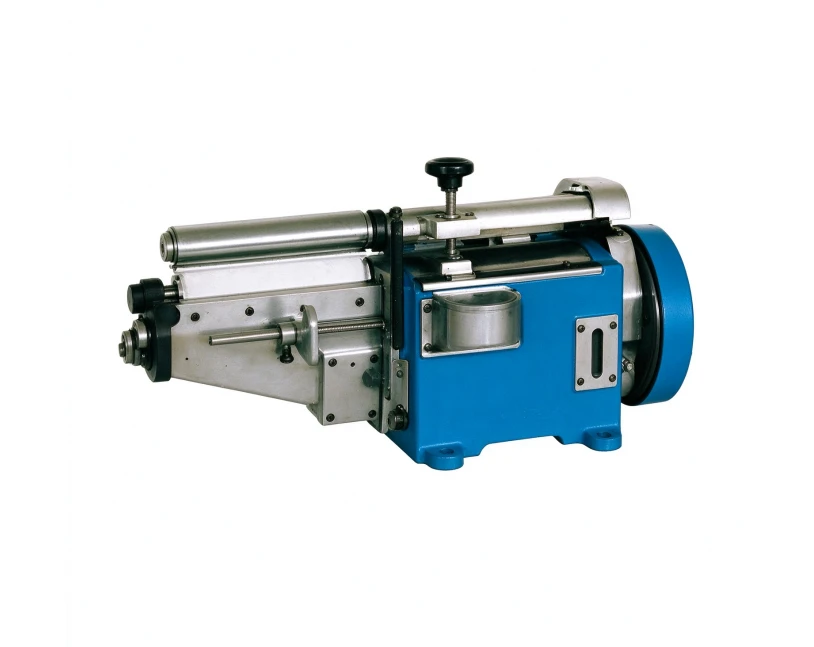

GW-326 Soft Cylinder Insole Cementing Machine

A robust and reliable gluing solution for footwear manufacturing. Designed for uniform cementing on hard materials and uneven surfaces, featuring an automatic super glue circulation system to prevent evaporation.

Request a Quote View Features

About the GW-326 Cementing Machine

The GW-326 is an industrial cementing machine engineered specifically for shoe insole preparation. It is highly effective for gluing hard materials such as insole boards and shank boards. Additionally, its soft cylinder design allows it to handle materials with uneven surfaces, ensuring a consistent and even application of adhesive.

The machine is compatible with a variety of adhesives, including super glue, yellow glue, PV glue, and latex. Whether you are producing standard footwear or specialized orthotic insoles, the GW-326 provides a stable and simple operation with reliable performance.

Key Features

Automatic Super Glue Circulation

Equipped with an automatic circulation device and a sealed glue storage structure. This prevents strong glue from volatilizing or drying out, ensuring consistent adhesive quality and reducing waste.

Adjustable Gluing Amount

The amount of glue applied can be adjusted at will to accommodate different material types and production requirements, giving operators precise control over the process.

Under-Type Gluing Mechanism

Adopts an under-type gluing mechanism. This design ensures that the glue is applied uniformly and moderately to the material, avoiding excess pooling or uneven patches.

Simple Operation & High Reliability

Designed with the operator in mind, the machine offers simple operation and highly reliable performance, minimizing downtime and training requirements on the factory floor.

Applications & Specifications

This machine is widely used in the footwear industry for pre-gluing operations before the final assembly of shoes.

Parameter	Specification
Model	GW-326
Machine Type	Soft Cylinder Insole Cementing Machine
Application Materials	Insole boards, shank boards, and materials with uneven surfaces
Applicable Glues	Super glue, yellow glue, PV glue, latex
Glue System	Automatic super glue circulation device with sealed storage
Gluing Mechanism	Under-type gluing mechanism
Adjustability	Gluing amount can be adjusted at will

Note: For detailed technical parameters (such as dimensions, power, and weight), please refer to the attached detailed parameters or contact our sales team for the latest specification sheet.

Frequently Asked Questions

What types of glue can this machine use?

The GW-326 is compatible with super glue, yellow glue, PV glue, and latex. Its built-in circulation system is particularly useful for strong adhesives that tend to evaporate or cure quickly.

Can it handle uneven insole surfaces?

Yes. The machine utilizes a soft cylinder design specifically intended to apply glue uniformly even on materials with uneven or irregular surfaces.

How does the automatic circulation system benefit production?

The automatic super glue circulation device constantly moves the glue, and the sealed storage device prevents it from volatilizing or drying out. This saves material and ensures the glue maintains its properties throughout the work shift.
