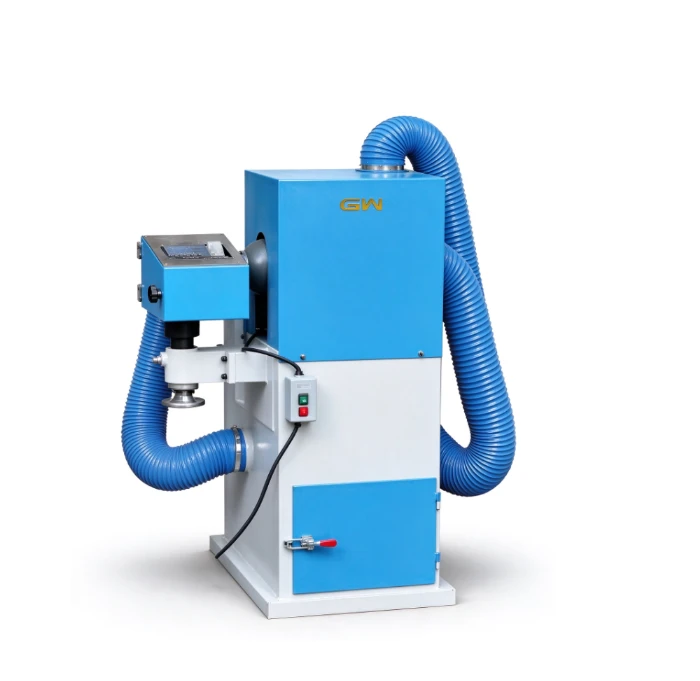

Shoe Sole Grinding Machine with Integrated Dust Collection
Built for the shoe machinery industry, this semi-automatic sole grinding machine flattens the bottom after lasting while the integrated suction system captures dust at the source. A cleaner workshop, a safer operator, and a consistent finish on every pair.
Why Footwear Factories Choose This Grinding & Dust Collection Unit
Grinding & Suction in One Motor
The grinding head and the dust collection fan are driven by the same integrated motor design. This compact, single-motor configuration reduces floor space, lowers energy waste, and keeps the suction force consistent during continuous operation.
Nylon Wheel for Post-Grind Cleaning
A nylon filament wheel is supplied as standard to clear residual dust and loose particles from the ground sole surface. This step prepares the sole for the next process and helps prevent dust from being carried into the assembly area.
Post-Lasting Sole Flattening
Specifically positioned for the after-lasting stage, the machine grinds the front and rear bottom areas of the sole to a flat, even surface. Semi-automatic operation gives the operator control over pressure and movement without complex programming.
About This Sole Grinding & Dust Collection Machine
This shoe sole grinding machine is a workshop-level solution for footwear factories that need to flatten the sole bottom after lasting. It fits directly into the shoe machinery industry workflow: once the upper has been lasted, the sole bottom often requires leveling to remove unevenness before the next assembly or finishing step. This machine performs that flattening operation with a semi-automatic control setup that keeps the process simple for the operator.
What sets this unit apart is the integrated dust collection approach. The grinding action and the suction system share the same motor assembly, so dust generated at the grinding point is pulled away immediately instead of escaping into the workshop air. This not only reduces visible dust accumulation on machines and floors but also lowers the operator's exposure to fine leather and rubber particles. A built-in nylon wheel is included to wipe down the sole surface after grinding, removing residual dust before the shoe moves to the next station.
With a compact footprint and a straightforward semi-automatic operation, the machine is suited to production lines where floor space is tight and operators need equipment they can use without extensive training. The design prioritizes practical, repeatable results: a flat sole bottom, a cleaner workstation, and a process that does not slow down the line.
Technical Specifications
The following parameters are based on the standard configuration. Contact us to confirm the exact specification for your production line.
| Parameter | Specification |
|---|---|
| Application | Flattening the front and rear sole bottom after lasting; sole surface dust removal |
| Operation Type | Semi-automatic |
| Grinding Method | Grinding wheel type |
| Power | 0.25 kW |
| Production Output | Up to 10,000 pairs per shift (actual output depends on sole material and operator rhythm) |
| Dust Collection | Integrated suction unit, same motor as grinding head |
| Post-Grind Cleaning | Nylon filament wheel supplied for dust removal |
| Working Voltage | Confirm at time of order |
| Machine Dimensions | Confirm at time of inquiry |
| Packing | Export-grade wooden case |
Note: Power rating and production capacity are based on standard sole materials. For thicker or harder sole compounds, we can advise on the appropriate configuration. Contact us with your sole types and output target.
Applications in Footwear Production
Post-Lasting Sole Leveling
Used immediately after the lasting process to grind the front and rear sole bottom flat. This creates a uniform surface that supports consistent downstream assembly and finishing.
Dust-Sensitive Assembly Areas
The integrated suction system keeps grinding dust contained at the source. This is particularly useful in workshops where clean conditions are required near bonding or finishing stations.
Mixed Sole Material Production
Suitable for common sole materials used in casual shoes, leather shoes, and general footwear. The semi-automatic control lets operators adjust pressure based on the sole's hardness and thickness.
Compact Line Integration
The grinding and suction functions share one motor and a compact frame, making the machine easy to position in space-constrained production cells or at individual workstations.
Customization & Delivery
We configure sole grinding machines to match your workshop layout and sole specifications. When you work with us, you can specify:
- Voltage configuration - matched to your factory's power supply.
- Grinding wheel specification - selected for your typical sole hardness and material.
- Dust collection setup - integrated suction configuration based on your workshop's dust management requirements.
- After-sales support - operation video, manual, and remote guidance for setup, adjustment, and routine maintenance.
For delivery, typical lead time is 20–40 days after order confirmation. We provide installation guidance and commissioning support. Packaging uses export-standard wooden cases with moisture protection for ocean transport.
Frequently Asked Questions
What is the main purpose of this machine in the shoe machinery industry?Need a Cleaner, More Efficient Sole Grinding Station?
Tell us your sole materials, output target, and workshop layout. We will recommend the right configuration and provide a detailed quotation covering machine, packing, and shipping.
