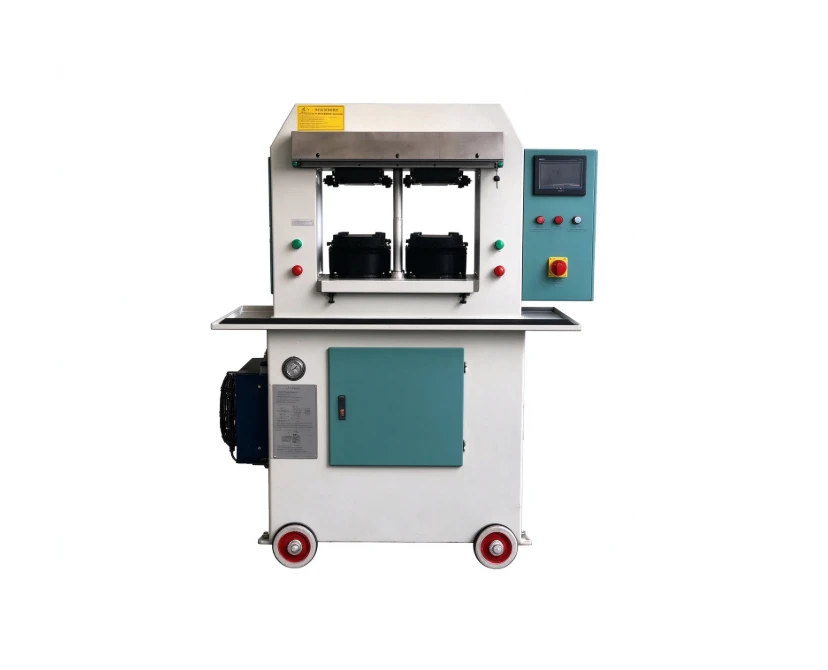

GW-316FA Double-station Shoe Insole Forming Press Machine
The latest generation of insole moulding equipment. It efficiently presses flat midsoles inside the mold into a specified shape, featuring an advanced control system, 80-ton hydraulic pressure, and comprehensive safety mechanisms.
About the GW-316FA Insole Moulding Machine
The GW-316FA is our new generation of double-station insole moulding machines. It is designed to efficiently press a flat midsole inside a mold into a specific, desired shape.
Equipped with an advanced PLC control system, this machine offers a highly customizable and safe operating experience. Operators can freely switch between single-cylinder and double-cylinder working modes, and choose from different light-curtain protection sensitivities based on their skill level. With a massive 80-ton pressing pressure, it guarantees an excellent molding effect for footwear production lines.
Key Features
Flexible Cylinder Control
With an advanced control system, operators can switch between single and double cylinder working modes at will, adapting to different production rhythms.
Customizable Safety Light Curtains
Based on personal habits, operators can switch between single-hand or two-hand operation. You can select 8, 10, or 12 groups of light control protection to set different sensing sensitivities.
Intelligent Fault Alarm
The machine automatically stops and triggers an alarm when it detects abnormal operation. The screen simultaneously indicates the cause of the failure for quick troubleshooting.
80-Ton Pressing Power
Equipped with a large cylinder that delivers 80 tons of pressing pressure. This high pressure ensures a better molding effect and superior shape retention for the insoles.
Isolated Oil Tank Design
The isolated tank keeps the hydraulic oil from splattering, ensuring the machine remains clean and reducing maintenance requirements.
Independent Cooling System
An independent cooling system keeps the oil temperature stable during continuous operation, which guarantees consistent product quality and extends machine lifespan.
Applications & Specifications
This machine is widely used in footwear manufacturing to mold flat midsoles into the specific anatomical shapes required for different shoe designs.
| Parameter | Specification |
|---|---|
| Model | GW-316FA |
| Machine Type | New Double-station Insole Moulding Machine |
| Application | Pressing a flat midsole in a mold to a specified shape |
| Pressing Pressure | 80 Tons (large cylinder) |
| Cylinder Mode | Single and double cylinder switching |
| Safety Protection | Light control protection (8, 10, or 12 groups sensitivity) |
| Fault Handling | Automatic stop and alarm with screen display |
| Hydraulic System | Isolated oil tank design |
| Cooling System | Independent cooling system for stable oil temperature |
Note: For additional technical parameters (such as motor power, dimensions, and weight), please refer to the attached detailed parameters or contact our sales team for the latest specification sheet.
Frequently Asked Questions
What is the difference between single-cylinder and double-cylinder mode?Upgrade Your Insole Molding Process
Ensure precise shapes and high efficiency with the GW-316FA 80-ton press. Contact us for a detailed quotation and shipping information.
