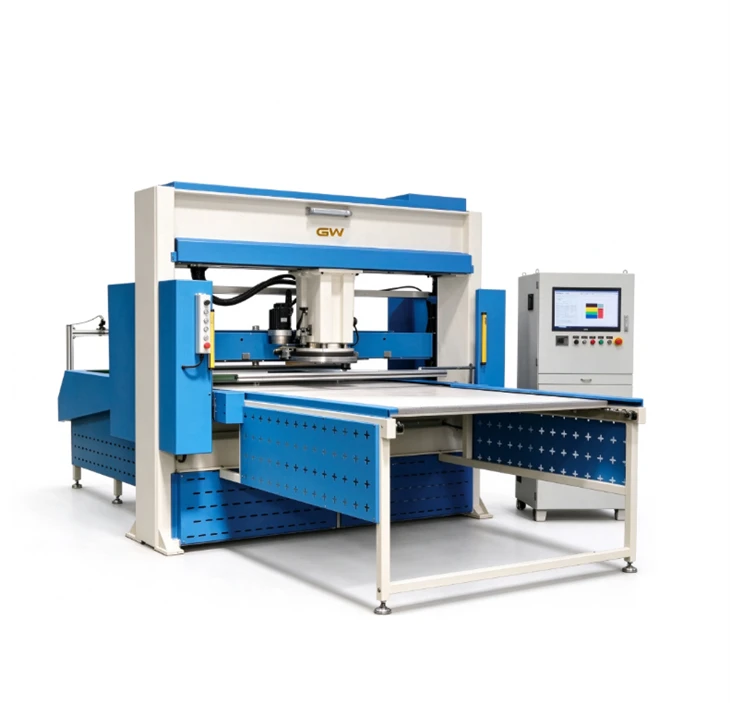

CNC Automatic Tool Changer Cutting Machine for Shoe & Sole Production
Equipped with a 6-station automatic tool changer for fast die changes. High-speed CNC cutting at 30-40 times per minute, imported servo control, and gantry frame structure for precision stability in shoe machinery and sole machinery manufacturing.
Why Choose Our CNC Automatic Tool Changer Cutting Machine
6-Station Automatic Tool Changer
Equipped with an automatic tool changer holding six cutting dies in the tool magazine. The unique die installation structure makes changing dies faster, saving changeover time and boosting working efficiency across different shoe styles.
Advanced CNC & Computer Typesetting
The advanced CNC cutting system features a user-friendly interface. The computer typesetting system realizes automatic movement, die arrangement, and cutting. It allows setting the angle, position, speed, and depth for each cut, with manual simulation for verification.
High-Speed, High-Yield Output
Achieves 30-40 cutting cycles per minute, ensuring high yield and throughput for demanding shoesmachine solemachine machinery production lines. The imported servo control provides high precision and stable performance.
About This CNC Automatic Tool Changer Cutting Machine
Our CNC automatic tool changer cutting machine (Model GW-889) is a high-performance system designed for efficient and precise cutting in shoesmachine solemachine machinery manufacturing. It is equipped with an automatic tool changer that holds six cutting dies in the tool magazine. The unique cutting die installation structure makes die changes more convenient, significantly saving changeover time and improving overall working efficiency.
The machine features an advanced computer numerical control (CNC) cutting system with a user-friendly operation interface. The integrated computer typesetting system handles automatic movement, die arrangement, and cutting execution. Operators can set the angle and position of each tool on the pressing head, configure cutting speed and depth, test hardware connections, and manually simulate the machine's operation state before full production. This ensures high cutting speed-achieving 30-40 cuts per minute-and maximum yield.
Built for longevity and precision, the main machine uses a gantry framework structure made of profile steel, providing high strength and resistance to deformation. All sliding connection parts utilize a central oil supply automatic lubrication system, guaranteeing the machine's service life and accuracy. Safety is ensured by the safety light curtain in the cutting area. The machine is driven by imported servo control (2kW Delta servo motor) and a 4HP/3kW motor, and an optional roll material handling model is available to suit your specific production workflow.
Technical Specifications
The following parameters are based on the standard configuration. Custom configurations are available.
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Model | GW-889 | Max. Cutting Force (M.C.F) | 30 T |
| Machine Dimensions | 5000 × 2550 × 2310 mm | Stroke | 5 – 130 mm |
| Computer Box Dimensions | 710 × 610 × 1820 mm | Motor Power | 4 HP / 3 kW |
| Cutting Area | 1700 × 1600 mm | Servo Motor (Delta) | 2 kW |
| Arm Width | 400 × 400 mm | Weight | 3700 kg |
Note: Optional roll material handling model is available. Contact us with your material specifications and output target for a tailored recommendation.
Applications
Shoe Upper & Sole Cutting
Precision cutting for various shoe uppers and sole materials. The 6-station tool changer allows quick switching between different cutting dies for multi-style production.
High-Volume Mass Production
With cutting speeds of 30-40 cycles per minute and a 30T cutting force, the machine meets the demands of high-volume shoesmachine and solemachine manufacturing lines.
Precision Component Cutting
The imported servo control and high-strength gantry frame ensure stable, accurate cuts. Ideal for components requiring tight tolerances and consistent quality.
Integrated Line Operations
Designed to integrate into existing production lines. The safety light curtain protects operators, and the optional roll material handling model adapts to different feeding workflows.
Customization & Delivery
We configure CNC automatic tool changer cutting machines to match your production needs. When you work with us, you can specify:
- Roll material handling model - optional configuration for continuous material feeding.
- Typesetting software setup - programming for your specific die layouts and cutting parameters.
- Voltage configuration - configured for your factory's power supply.
- After-sales support - operation video, manual and remote technical guidance for adjustment and maintenance.
For delivery, typical lead time is 30–45 days after order confirmation, depending on configuration. We provide installation guidance and commissioning support. Packaging uses export-standard wooden cases with moisture protection for ocean transport.
Frequently Asked Questions
How many cutting dies can the tool magazine hold?Need a CNC Automatic Tool Changer Cutting Machine for Your Factory?
Tell us your material types, cutting requirements, and destination port. We will recommend the right configuration and provide a detailed quotation covering machine, packing, and shipping.
